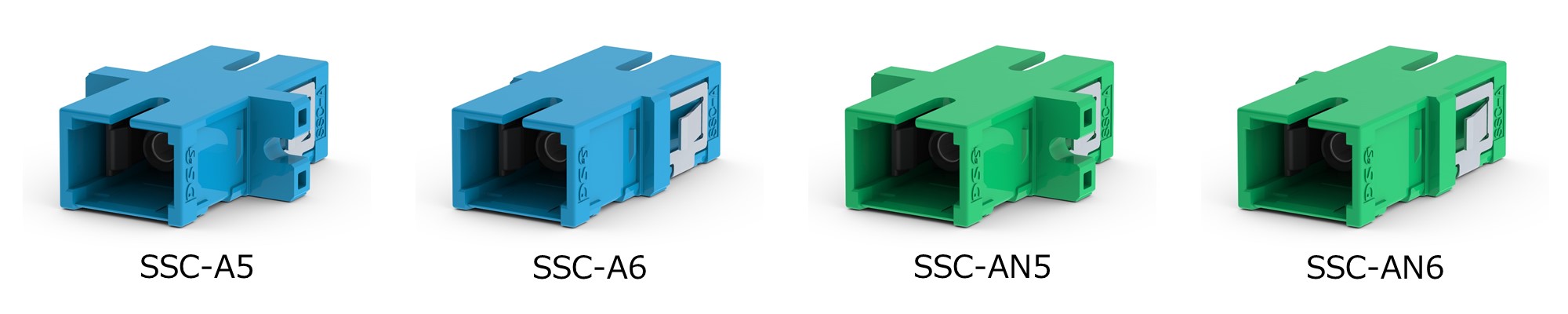

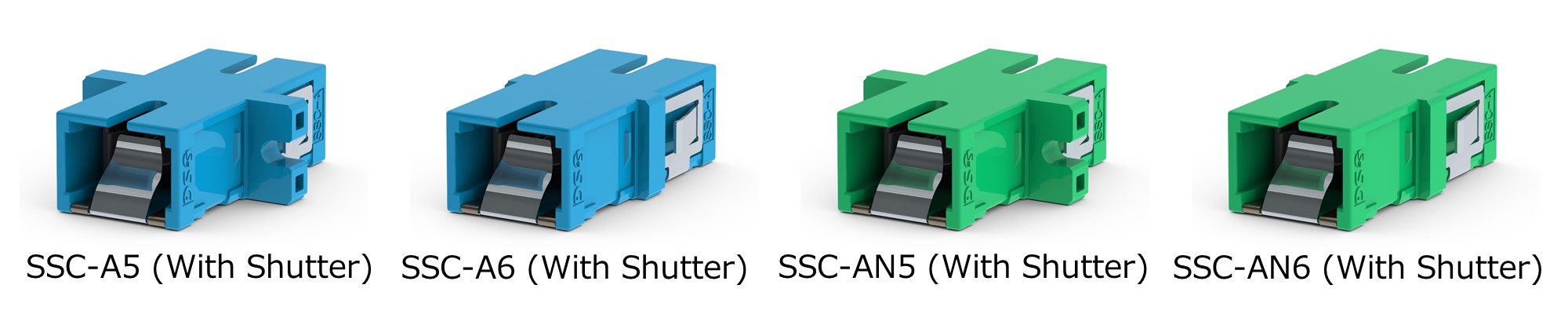

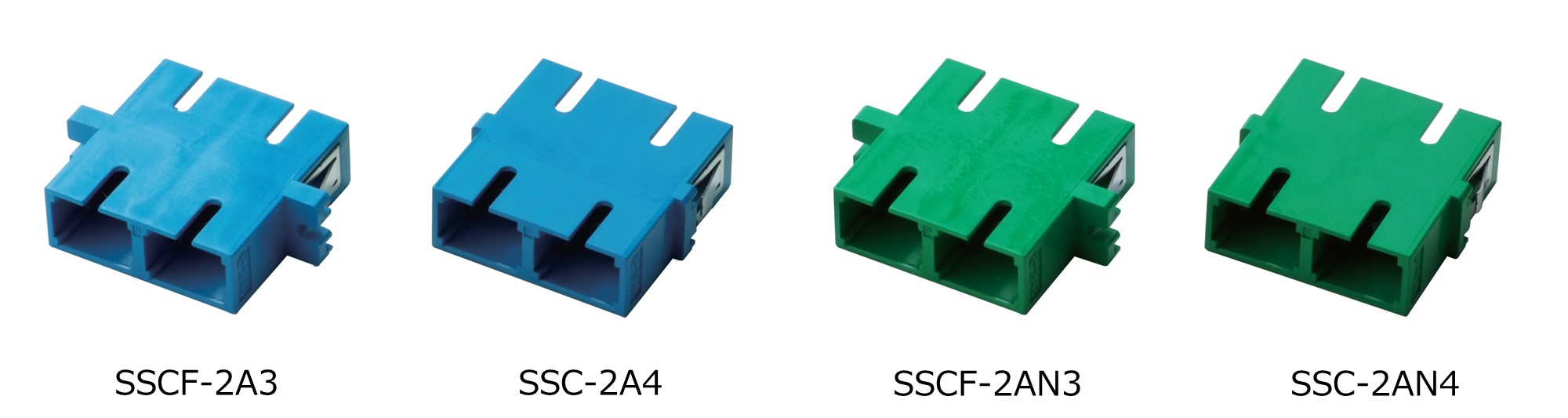

Compies with JIS C5973 F04 and IEC61754-4 Integrated solid body design for significant improvement in strength and durability over conventional design (excluding SSC-A2, SSC-AN2) Precision Zirconia split sleeve High-dense type with short flange also available (SSC-A4, SSC-AN4, SSCF-2A4, SSCF-2AN4)         Part Number Simplex for PC SSC-A322701G Simplex for PC (Metal) SSC-A222A01G Simplex for Angle PC SSC-AN322701G Simplex for Angle PC (Metal) SSC-AN222B00G Duplex for PC SSCF-2A322700G Duplex for Angle PC SSCF-2AN322700G Duplex Short Flange for PC SSCF-2A422700G Duplex Short Flange for Angle PC SSCF-2AN422700G

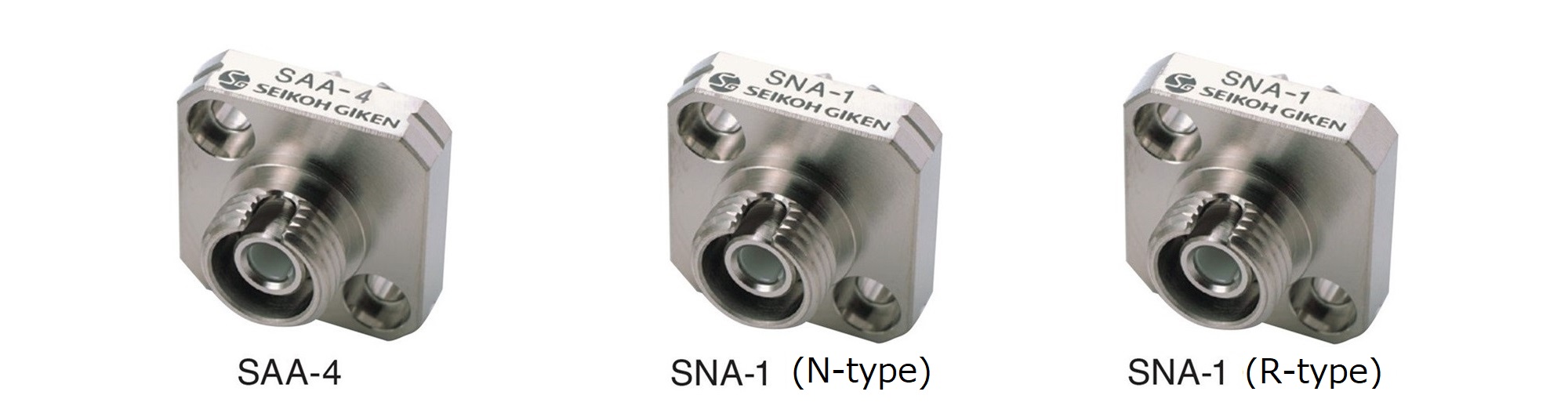

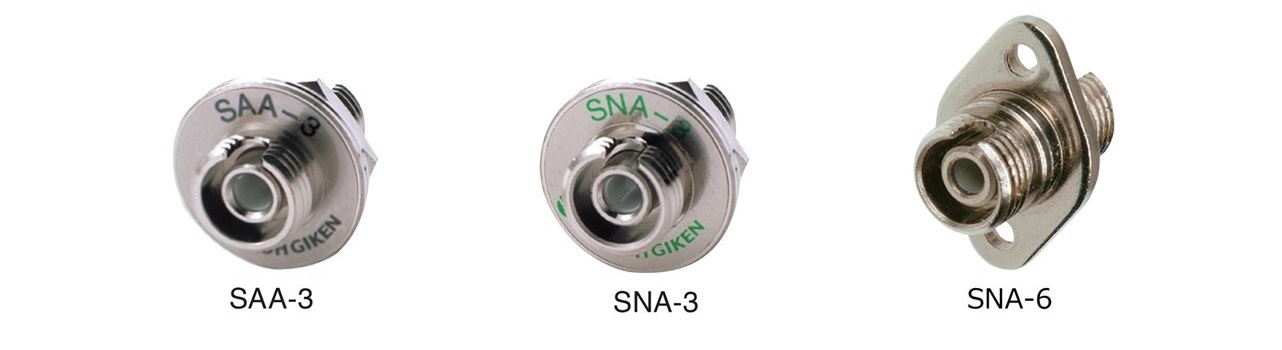

Complies with JIS C5970 F01 and IEC 61754-13 Precision Zirconia split sleeve  　    　   Part Number Standard for PC SAA-422200G Standard for Angle PC (N-type) SNA-1224D0G Standard for Angle PC (R-type) SNA-1224K0G Without Flange for PC (D-hole type) SAA-322200G Without Flange for Angle PC (D-hole N-type) SNA-3224D0G Without Flange for Angle PC (D-hole R-type) SNA-3224K0G Oval Flange for PC SAA-621A00G Oval Flange for Angle PC (R-type) SNA-621BK0G Without Flange for PC SAA-521A00G Without Flange for PC (D-hole with knurl) SAA-721A00G

Complies with JIS C5983 F14 and IEC 61754-6 Integrated solid body design for significant improvement in strength and durability over conventional design Precision Zirconia split sleeve         Part Number PC SMU-A1221100G Angle PC SMU-AN1221100G

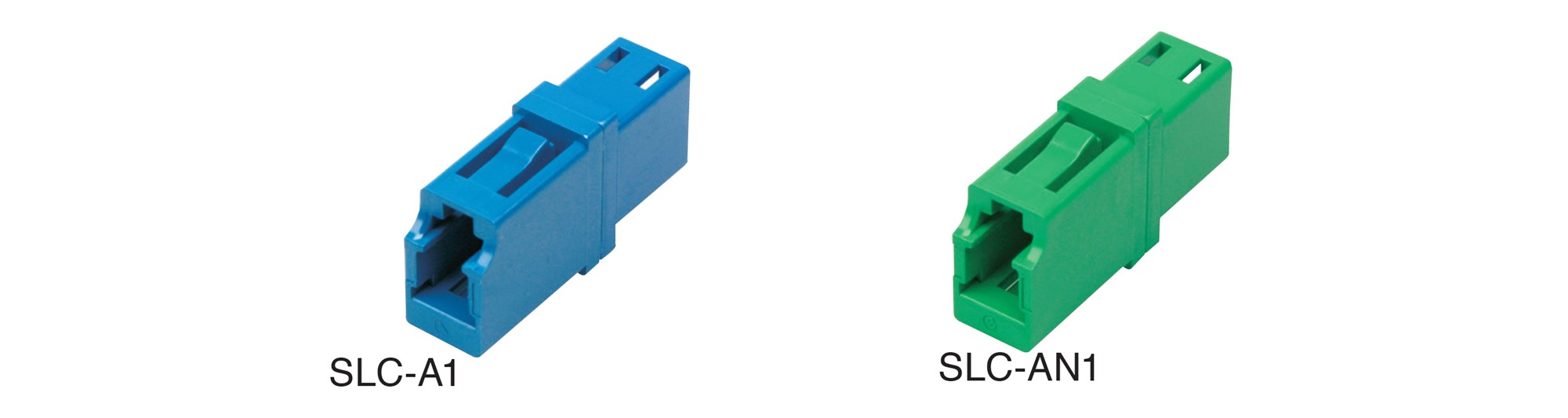

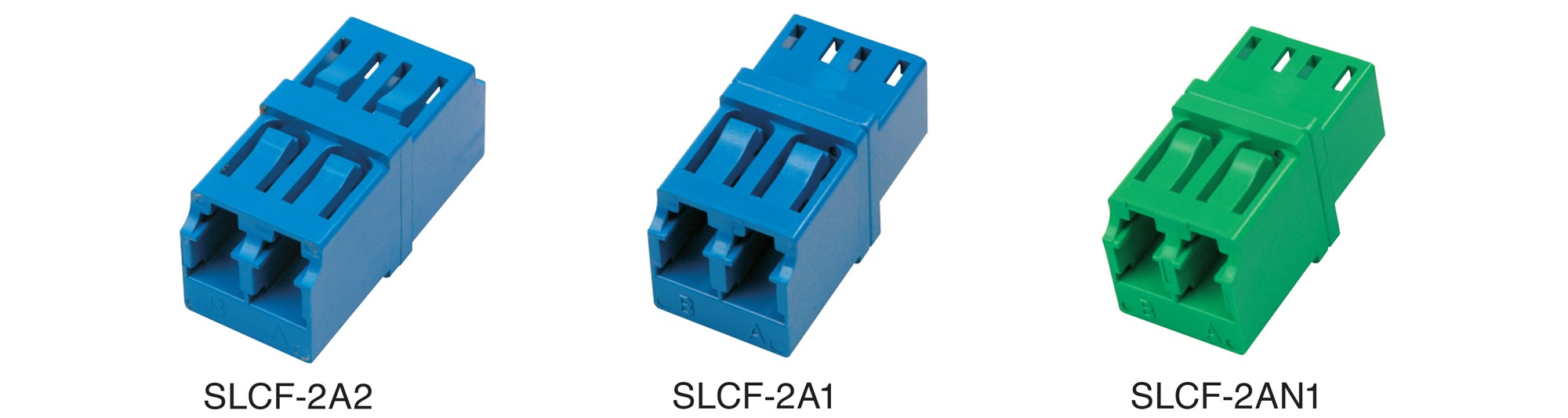

Complies with IEC 61754-20 and TIA/EIA-604-10-A Precision Zirconia split sleeve         Part Number Simplex for PC SLC-A121100G Simplex for Angled PC SLC-AN121100G Duplex for PC SLCF-2A221100G Duplex Low Profile for PC SLCF-2A121100G Duplex Low Profile for Angled PC SLCF-2AN121100G Duplex SC-Footprint for PC SLCFP-2A122701G Duplex SC-Footprint for PC With Shutter On One End SLCFP-2A1227X1G Duplex SC-Footprint For Angled PC SLCFP-2AN122701G Duplex SC-Footprint for Angled PC With Shutter On One End SLCFP-2AN1227X1G Duplex SC-Footprint Short Flange for PC SLCFP-2A422701G Duplex SC-Footprint Short Flange for PC With Shutter On One End SLCFP-2A4227X1G Duplex SC-Footprint Short Flange for Angled PC SLCFP-2AN422701G Duplex SC-Footprint Short Flange for Angled PC With Shutter On One End SLCFP-2AN4227X1G Quad SC-Footprint for PC SLCFP-4A121100G Quad SC-Footprint Short Flange for PC SLCFP-4A421100G

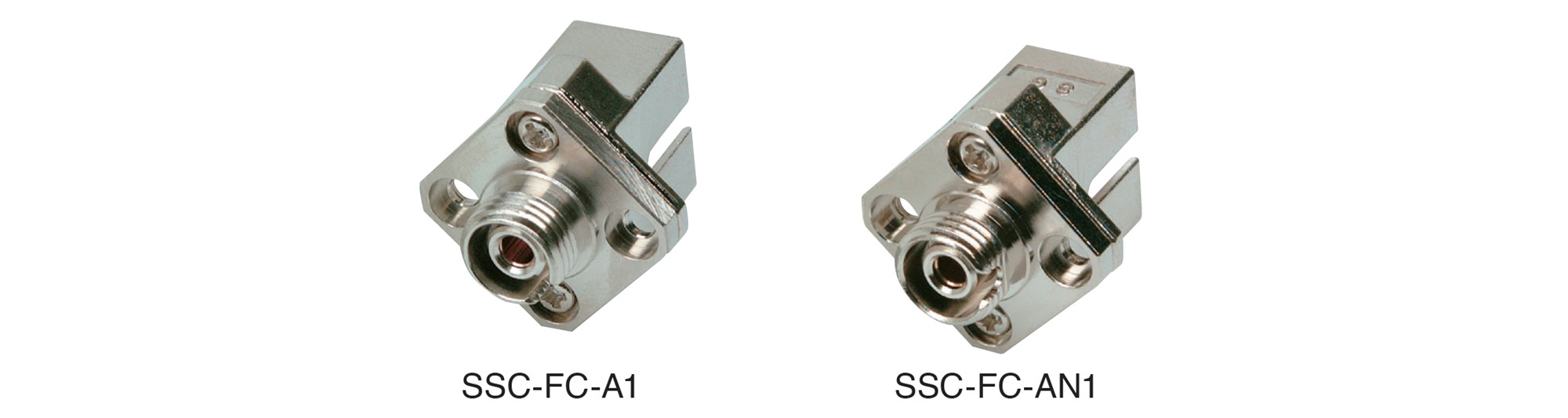

Precision Zirconia split sleeve         Part Number FC/SC SSC-FC-A122A02G FC/SC Angle PC (R-type) SSC-FC-AN122BK1G
