Equivalent to NTT specification (FC) |
|
Complies with IEC 61754-13 and JIS C 5970 |
|
Models achieve Telcordia optic connector test specification GR-326-CORE
are available |
|
Models satisfy Vertical Burning Test for Classifying Materials UL94V-0
are available |
|
Keying width |
Unit: mm |
| |
PC |
Wide
key (N-type)
Angle PC |
Narrow
key (R-type)
Angle PC |
| Housing Plug |
2.0 ±0.15 |
2.14 +0/-0.05 |
2.02 +0/-0.05 |
| Adapter |
2.4 ±0.2 |
2.15 +0.05/-0 |
2.03 +0.05/-0 |
|
|
|
|
 |
 |
|
 |
Plastic boot complies with with GR-326-CORE |
|
Applicable for standard PC and Angle PC (N-type
and R-type) |
|
Possible to use plug frame of R-type for standard
PC application |
|
Possible to use same crimping assembly method
as SC (crimping tool part number: MDTK-02-120G) |
|
Satisfies Vertical Burning Test for Classification Materials UL94V-0 (excluding
cap) |
|
SAP-3: for φ2, φ2.4, φ3mm |
|
SAP-6: for φ0.9mm |
|
| |
|
|
| a |
Boot
Color |
Black |
1 |
| Green |
8 |
| b |
Boot
I.D. |
φ0.9mm
(flame-resistant rubber) |
8 |
| φ2mm
(plastic) |
6 |
| φ3mm
(plastic) |
7 |
| φ2.4mm
(plastic) |
A |
| c |
Marking
of Boot |
SG
(SAP-3) |
1 |
| No
marking (SAP-6) |
0 |
| d |
Cap |
Black
ferrule cap |
A |
| Green
ferrule cap |
B |
| e |
Package |
Bulk |
0 |
| f |
Keying
Width |
N-type(wide) |
D |
| R-type(narrow) |
K |
| g |
Required |
0G |
|
|
|
|
 |
|
|
|
 |
 |
|
|
Equivalent to NTT specifications(FC-P)(SAP-1) |
|

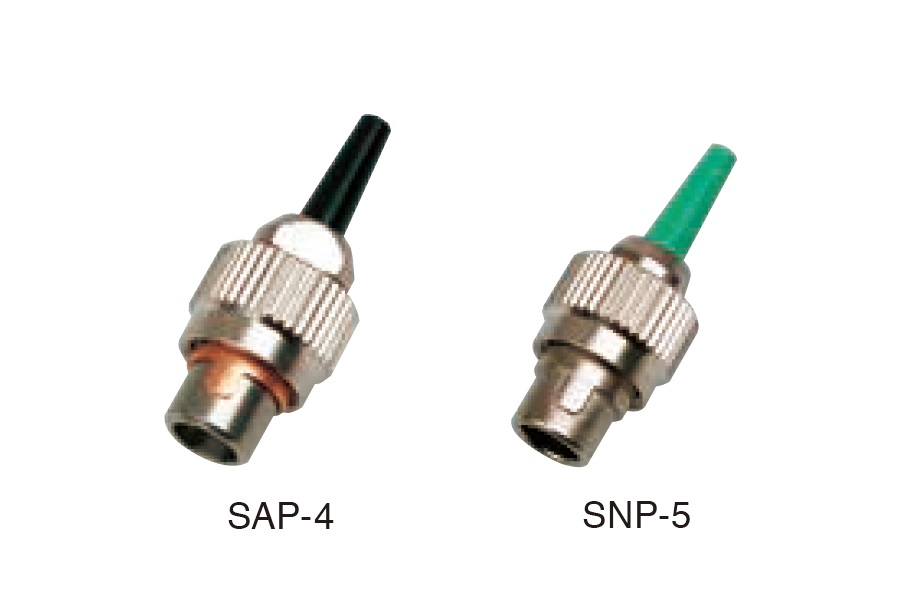

Total length of 24mm is optimum for use inside system equipment and devises(SAP-4) |
|
Models Satisfy Vertical Burning Test for Classifying Materials UL94V-0 are available(SAP-4) |
|
Widely used for LD/PD modules |
|
SAP-1 : for ø2mm, ø3mm |
|
SAP-4 : for ø0.9mm |
|
| |
|
|
| a |
Boot
Color |
Black |
1 |
| b |
Boot
I.D. |
φ0.9mm (flame-resistant rubber) |
8 |
| φ2mm (rubber) |
2 |
| φ3mm (rubber) |
3 |
| c |
Marking of
Boot |
No
marking |
0 |
| d |
Cap |
White
(plastic) |
3 |
| Black
ferrule cap |
A |
| e |
Package |
Bulk |
1 |
| f |
Required |
00G |
|
|
|
|
|
|
|
|
 |
 |
|
|
Housing designed for Angle PC application |
|
Total length of 24mm is optimum for use inside
system equipment and devices (SNP-5) |
|
Two types of key width available N-type and
R-type |
|
SNP-2: for φ2, φ3mm |
|
SNP-5: for φ0.9mm |
|
| |
|
|
| a |
Boot
Color |
Green |
8 |
| b |
Boot
I.D. |
φ0.9mm
(rubber) |
1 |
| φ0.9mm
(flame-resistant rubber) |
8 |
| φ2mm
(rubber) |
2 |
| φ3mm
(rubber) |
3 |
| c |
Marking of
Boot |
No
marking |
0 |
| d |
Cap |
Green
(PVC) |
8 |
| Green
ferrule cap |
B |
| White
(plastic) |
3 |
| e |
Package |
Bulk |
0 |
| Pre-assy |
1 |
| f |
Keying
Width |
N-type |
D |
| R-type |
K |
| g |
Required |
1G |
|
|
|
|
|
|
|
|
 |
 |
|
|
360° variable tuning |
|
Uses same crimping assembly method as SC
(Crimping tool part number: MDTK-02-120G) |
|
Connector series satisfies vertical Burn Test. Materials comply to UL94V-0 |
|

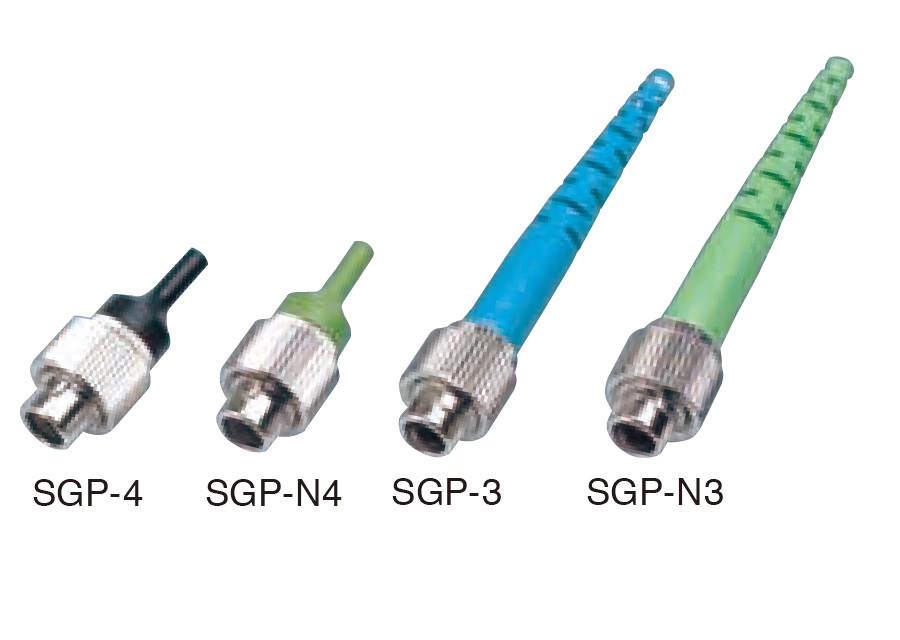

SGP-3, 4: for PC application. Ferrule SZ-3A15 series (Flange o.d. φ4.7mm, pre-radius) should be used together. |
|
SGP-N3, N4: for APC application. Narrow key type is available as standard. If wide key type is required, please contact us.
Ferrule SGZ-1A15 series (Flange o.d. φ4.7mm, step type) should be used together. |
|
| |
|
|
| |
Part Number |
| φ0.9mm for
PC (flame-resistant rubber) |
SGP-418001K0G |
| φ0.9mm for
Angle PC (flame-resistant rubber) |
SGP-N488001K0G |
| φ2mm for
PC |
SGP-356001K0G |
| φ2mm with
short boot for PC |
SGP-3S5D001K0G |
| φ3mm for
PC |
SGP-357001K0G |
| φ2mm for
Angle PC |
SGP-N386001K0G |
| φ2mm with
short boot for Angle PC |
SGP-N3S8D001K0G |
| φ3mm for
Angle PC |
SGP-N387001K0G |
|
|
|
|
|
|
|
|
 |
 |
|
|
One-piece design for easy assembly |
|
Pre-dome Zirconia ferrule enables easy polishing |
|
Plastic boot complies to Telcordia GR-326-CORE |
|
Uses same crimping assembly method
as SC (crimping tool part number: MDTK-02-120G) |
|
Satisfies Vertical Burning Test for Classification Materials UV94V-0. |
|
| |
|
|
| a |
Boot
Color |
Black |
1 |
| b |
Boot
I.D. |
φ0.9mm
(flame-resistant rubber) |
1 |
| φ0.9mm
(plastic) |
9 |
| φ3mm
(plastic) |
3 |
| φ2mm
(plastic) |
6 |
| c |
Ferrule
I.D. |
125μm |
125 |
| 126μm |
126 |
| d |
Marking
of Boot |
No
marking-φ0.9 (flame-resistant rubber) |
0 |
| SG-φ0.9-3
(plastic) |
1 |
| e |
Cap |
Black
(PVC) |
1 |
| Black
ferrule cap |
A |
| f |
Package |
Bulk |
3 |
| g |
Frame |
Machined |
0 |
| Molded |
D |
| h |
Required |
0G |
|
|
|
|
|
|
|
|
 |
 |
|
|

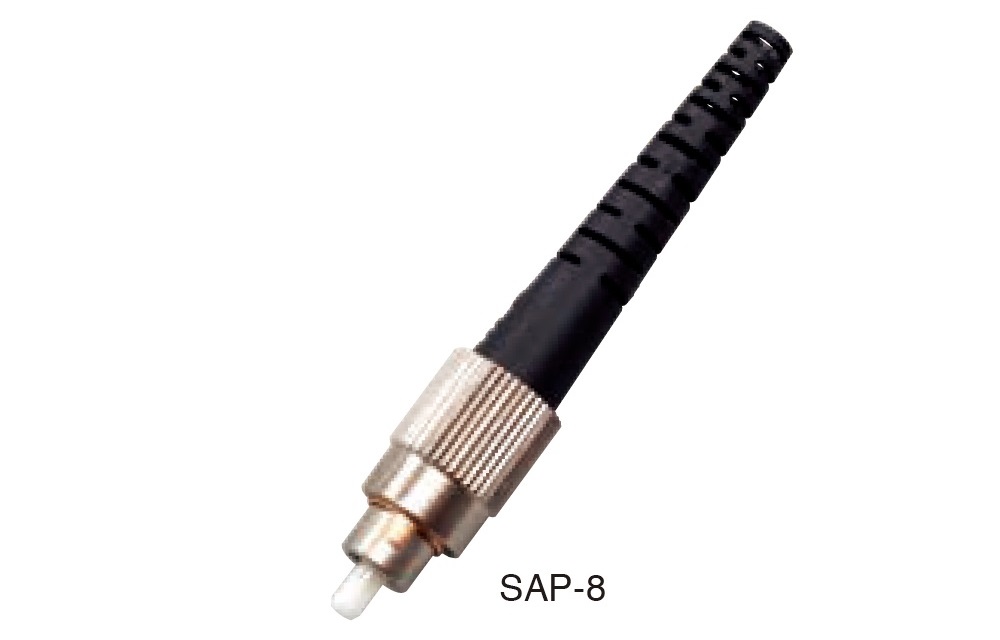

One-piece design for easy assembly |
|
Pre-angle Zirconia (step shape or conical
shape) enables easy polishing |
|
Plastic boot complies with Telcordia GR-326-CORE |
|
Uses same crimping assembly method as SC (crimping tool Part Number: MDTK-02-120G) |
|
Wide and narrow key width available |
|
Satisfies Vertical Burning Test for Classification Materials UV94V-0. |
|

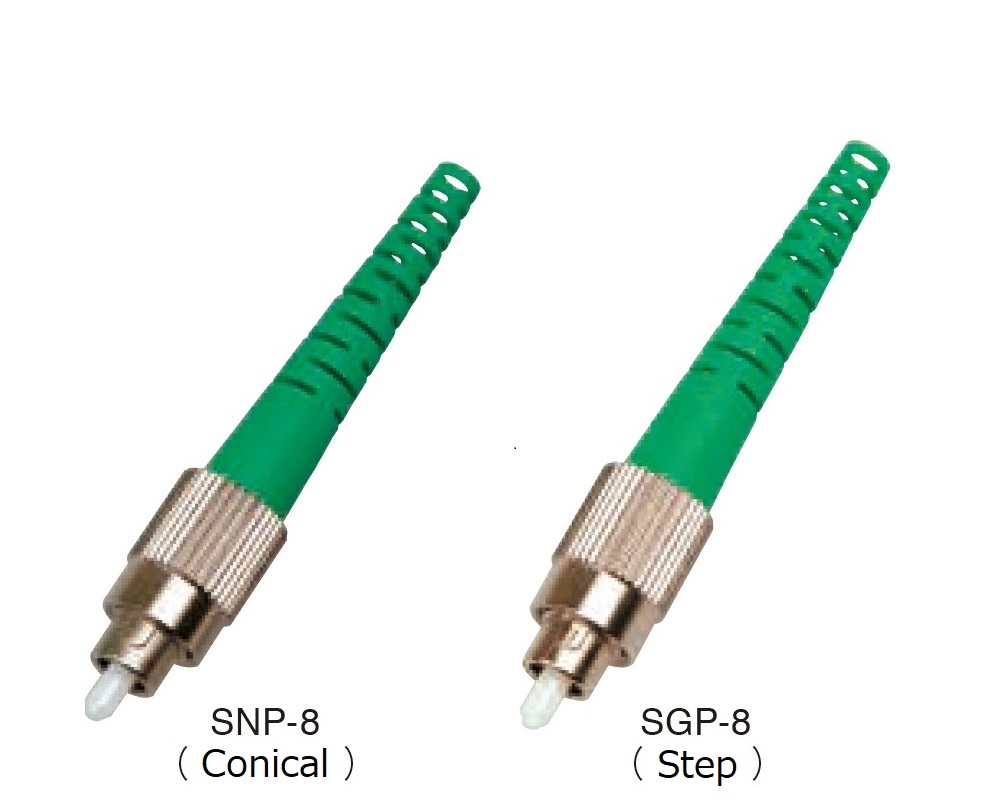

SGP-8: Step ferrule type |
|
SNP-8: Conical ferrule type |
|
| |
|
|
| a |
Boot
Color |
Green |
8 |
| b |
Boot
I.D. |
φ0.9mm
(flame-resistant rubber) |
1 |
| φ0.9mm
(plastic) |
9 |
| φ3mm
(plastic) |
7 |
| φ2mm
(plastic) |
6 |
| c |
Ferrule
I.D. |
125μm |
125 |
| 126μm |
126 |
| d |
Marking
of Boot |
No
marking-φ0.9 (flame-resistant rubber) |
0 |
| SG-φ0.9-3
(plastic) |
1 |
| e |
Cap |
Green
(PVC) |
8 |
| Green
ferrule cap |
B |
| f |
Package |
Bulk |
3 |
| g |
Keying
Width |
N-type |
D |
| R-type |
K |
| h |
Required |
1G |
|
|
|
|
|
|
 |
