Plug Type Fixed Attenuator
Available in FC, SC, LC, ST and MU plug type. They are suitable for connection through panel-mounted adapters
Precision polished endface are available for both PC and Angle PC types
Standard wavelength is 1310/1550nm and also C/L band or any other custom specifications are available
U.S. Pat. No. 5,321,790 / 5,136,681 / 5,066,094

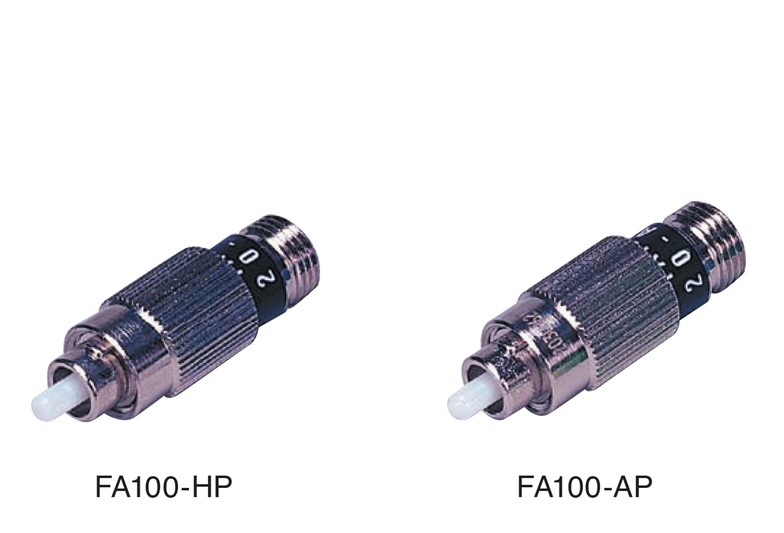

FA100 Series (FC Plug Type)


Key width for APC is narrow type.



a Attenuation See Table 4
b Polishing PC polishing / Standard HP
PC polishing / High grade HP5
Angle PC polishing / Standard AP
Angle PC polishing / High grade AP5

FA110 Series (SC Plug Type with Plastic Housing)



a Attenuation See Table 4
b Polishing PC polishing / Standard HP
PC polishing / High grade HP5
Angle PC polishing / Standard AP
Angle PC polishing / High grade AP5

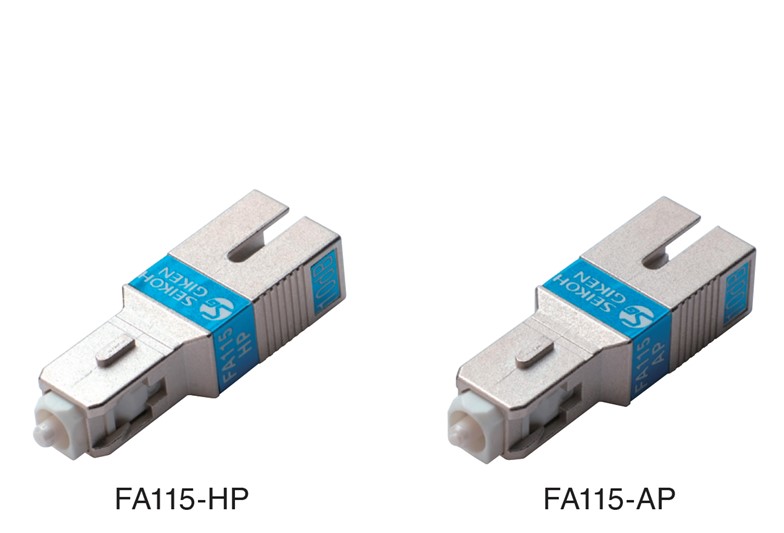

FA115 Series (SC Plug Type with Metal Housing)



a Attenuation See Table 4
b Polishing PC polishing / Standard HP
PC polishing / High grade HP5
Angle PC polishing / Standard AP
Angle PC polishing / High grade AP5

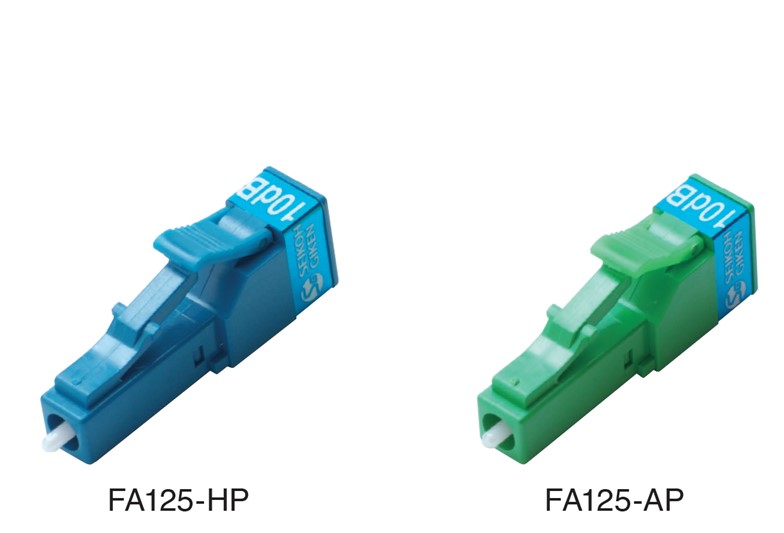

FA125 Series (LC Plug Type)

6.25mm pitch for high density mounting space


a Attenuation See Table 4
b Polishing PC polishing / Standard HP
PC polishing / High grade HP5
Angle PC polishing / Standard AP
Angle PC polishing / High grade AP5

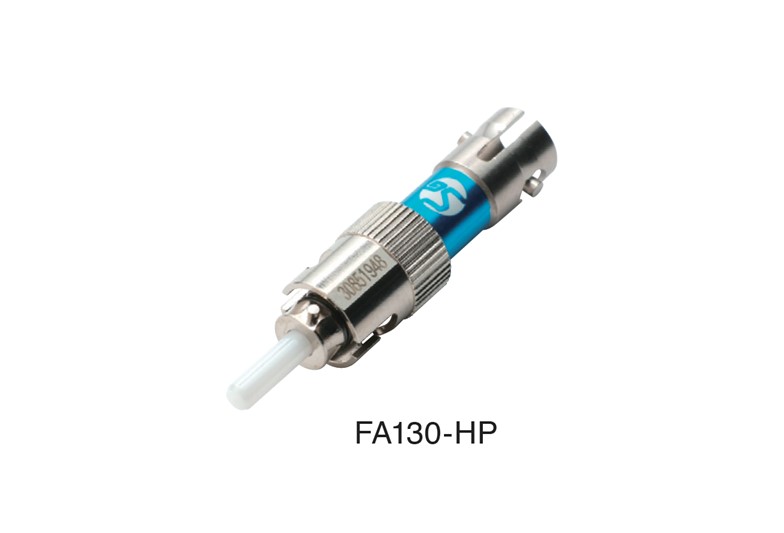

FA130 Series (ST Plug Type)



a Attenuation See Table 4
b Polishing PC polishing / Standard HP
PC polishing / High grade HP5

FA140 Series (MU Plug Type)

4.5mm pitch for high density mounting space

Compatible with MU-J plug from various manufacturers


a Attenuation See Table 4
b Polishing PC polishing / Standard HP


Table 4. Attenuation and corresponding notation
Attenuation (dB) Notation
1 01
2 02
3 03
4 04
5 05

Attenuation (dB) Notation
6 06
7 07
8 08
9 09
10 10

Attenuation (dB) Notation
11 11
12 12
13 13
14 14
15 15
20 20


Inline Type Fixed Attenuator
Inline type attenuator for S/M application
Custom specifications are available in attenuation, wavelength and length

FA213 Series (φ3mm Cable Type)




a Attenuation See Table 4
b Connector Qty None 0
One side 1
Both side 2
c Connector Type FC (UPC) SAP3
FC (APC R) SGPN3
FC (APC N) SNP3D
SC (UPC) SSCP3
SC (APC) SSCPN3
