LC Type Fiber Optic Connectors
Complies with IEC61754-20, TIA/EIA-604-10-A and JIS C 5964-20
Models meet Telcordia test specification GR-326-CORE are available
Connector series satisfies Vertical Burn Test. Materials comply to UL94V-0
Unique design achieved quick assembly while maintaining high performance

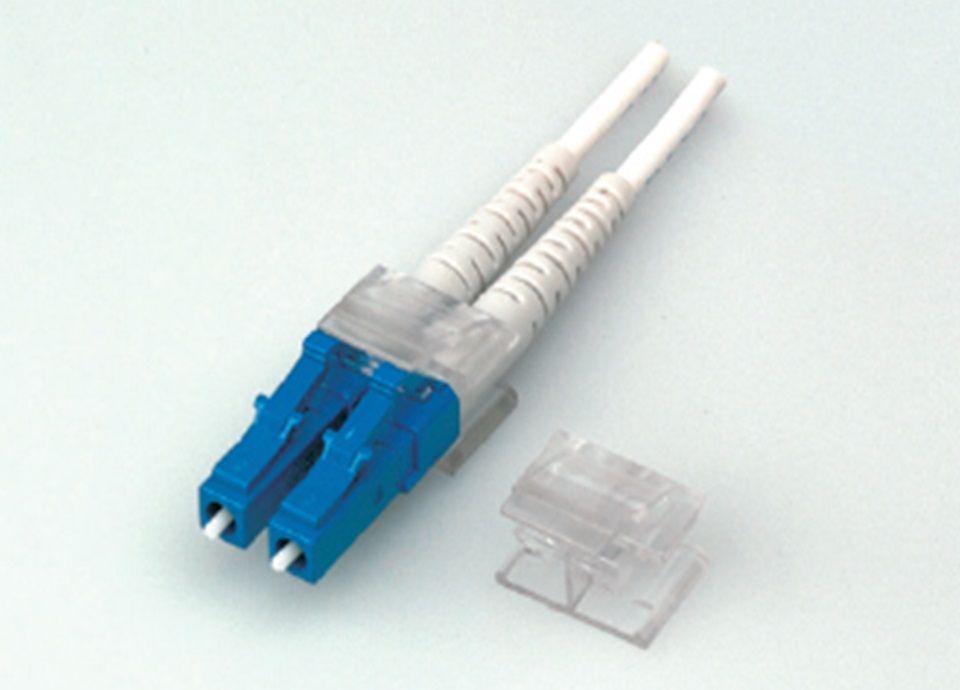

Duplex Clip can combine two simplex φ2.0mm connectors as duplex connector (6.25mm pitch)
Applicable precision crimping tool
Part Number: MDTK-02-141G

LC Housing for PC

LC Housing for PC

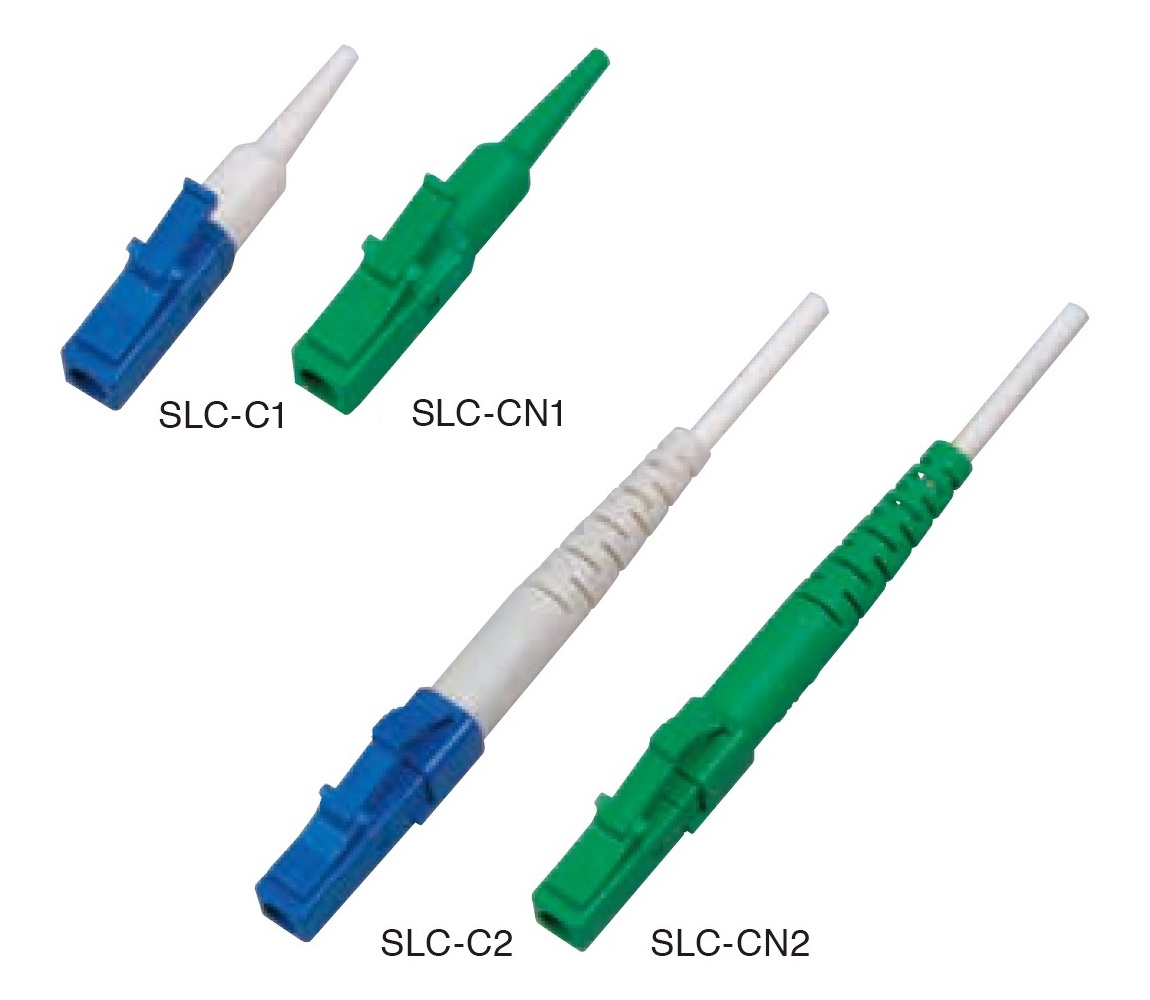

SLC-C1: for φ0.9mm

SLC-C2: for φ1.6~φ2.0mm
  Part Number
φ0.9mm SLC-C1310F303G
φ1.6-2.0mm SLC-C2320F302G

LC Housing for Angle PC

SLC-CN1: for φ0.9mm

SLC-CN2: for φ1.6~φ2.0mm
  Part Number
φ0.9mm SLC-CN1810F303G
φ1.6-2.0mm SLC-CN2820F302G

LC Housing for PC and Angle PC Short Length

Total 40.5mm short length LC connector

Available for only 2mm O.D. cable

Uses crimping assembly method and not require heat-shrink tube

Original crimping tool is needed

Available precision crimping tool Part Number : SCT-L010

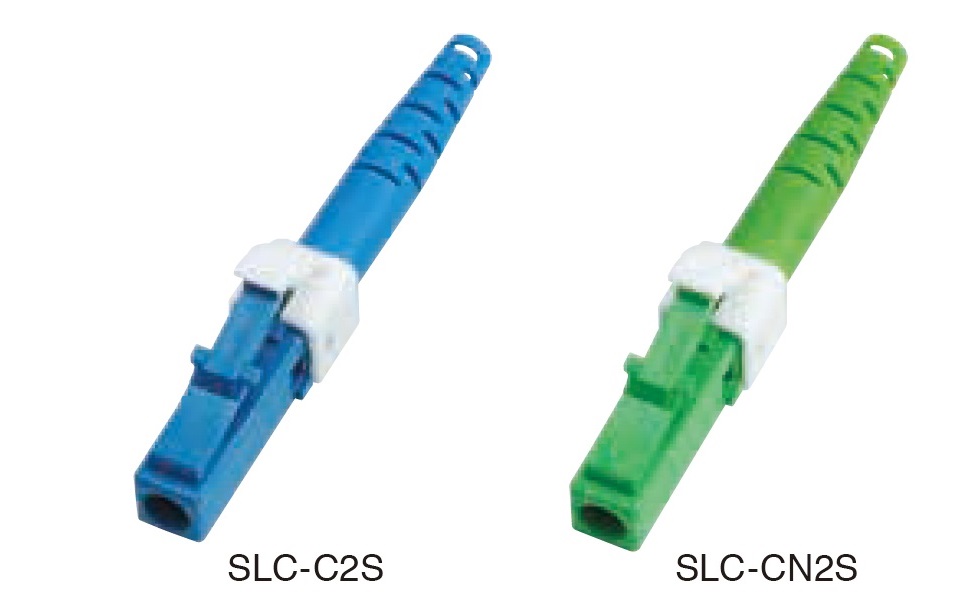

LC Short Housing for 2mm Cable
  Part Number
1.6`2.0mm SLC-C2S320F3B1G

LC Short Housing (Angled PC) for 2mm Cable
  Part Number
1.6`2.0mm SLC-CN2S820F3G1G

LC Plug for PC

One-piece design with Zirconia LC ferrule for easy assembly

Connector series equipped with core adjustment feature

Use of heat-shrink tube for compatibility with φ1.6~2mm cables (SLC-P2)

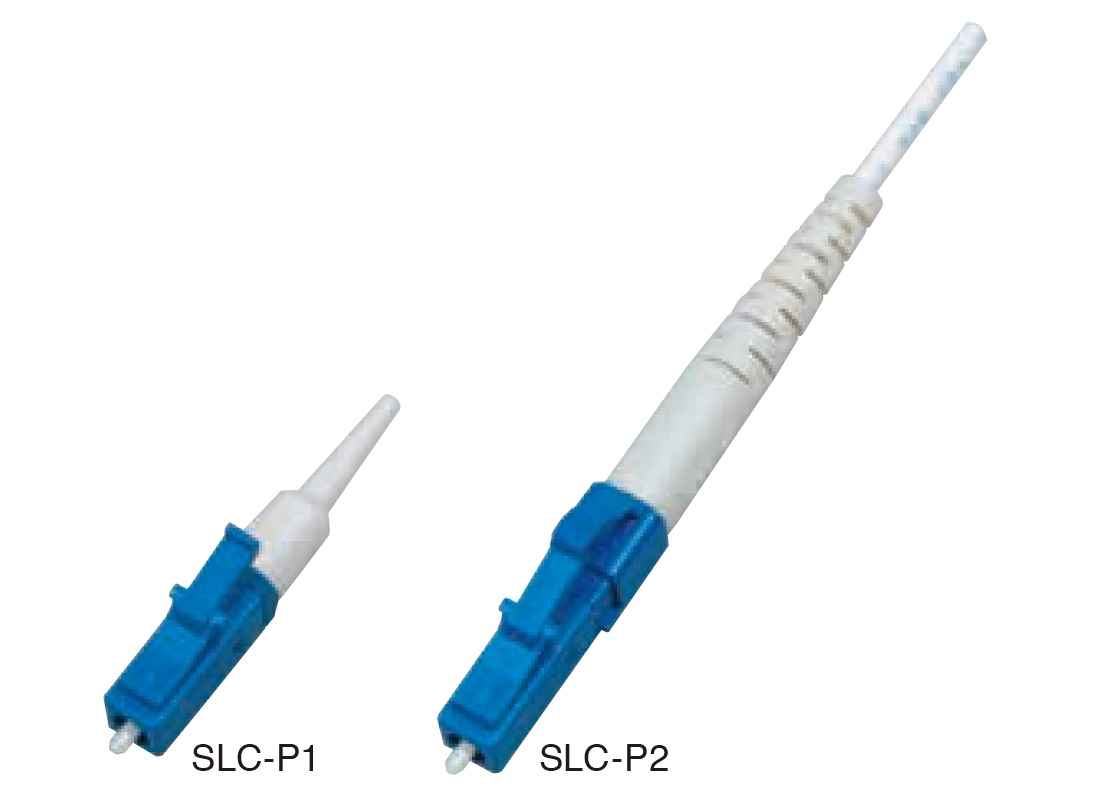

SLC-P1: for φ0.9mm cable

SLC-P2: for φ1.6~φ2mm cable




a Boot Color White (SLC-P2) 3
Light gray (SLC-P1)
b Boot I.D. φ0.9mm 1
φ2.0mm 2
c Ferrule I.D. 125μm 125
125.5μm 12F
126μm 126
d Marking of Boot SG 1
e Cap White dust cap F
f Package Bulk 3
g Required 03G

LC Plug for Angle PC

One-piece design with Zirconia LC ferrule for easy assembly

Connector series equipped with core adjustment feature

Use of heat-shrink tube for compatibility with φ1.6~2mm cables (SLC-PN2)

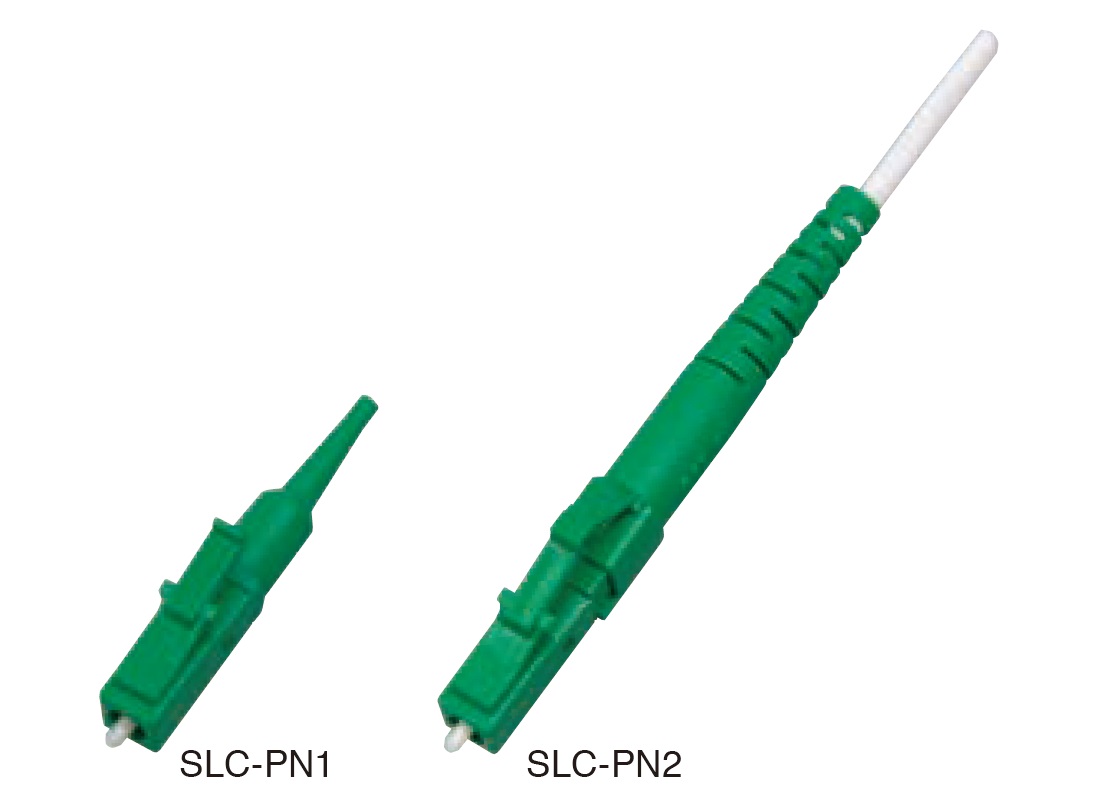

SLC-PN1: for φ0.9mm cable

SLC-PN2: for φ1.6~φ2mm cable




a Boot Color Green 8
b Boot I.D. φ0.9mm 1
φ2.0mm 2
c Ferrule I.D. 125μm 125
125.5μm 12F
126μm 126
d Marking of Boot SG 1
e Cap White dust cap F
f Package Bulk 3
g Required 03G


Page top

Click link below for detailed LC connector drawings and specifications

>> To LC connector specifications download page

Get Adobe Reader Adobe Reader is required to open the pdf files above.
Click here to download a free copy.
