Fiber array
- •Fiber array is an essential component used in the WDM systems to connect optical fiber and AWG chip
- •Our precision processing technology, which we have developed for years, provides high fidelity, quality and core pitch accuracy
- •High quality Seikoh-Giken connectors are used at the end of fibers
Features
- ・High precision core pitch accuracy
- ・High reliability

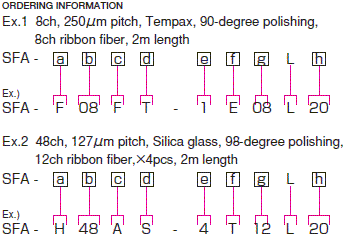

| a | Pitch | 250μm | F |
| 127μm | H | ||
| 1ch. | N | ||
| b | Channel | 1ch. | 01 |
| 8ch. | 08 | ||
| 16ch. | 16 | ||
| 32ch. | 32 | ||
| 48ch. | 48 | ||
| c | Polishing Angle | 90 degree | F |
| 98 degree | A | ||
| 82 degree | R | ||
| d | Material | Tempax (Borofloat) | T |
| Silica glass | S | ||
| e | Q'ty of ribbon fiber | 4pcs (example) | 4 |
| f | Fiber Type | φ0.25 UV | S |
| 4ch. ribbon fiber | F | ||
| 8ch. ribbon fiber | E | ||
| 12ch. ribbon fiber | T | ||
| φ0.9(SMF-28) | B | ||
| g | channel per ribbon fiber | 8ch ribbon fiber (example) | 08 |
| h | Length | 2.0m (standard) | 20 |
Specification
| Material | Tempax (borofloot) (CTE：3.3×10-6) |
| Silica Glass (CTE：5×10-7) | |
| Channel | 1、8、16、32、48 (other channel available) |
| Pitch | 127、250μm |
| Pitch Accuracy | ±0.5μm |
| Fiber | SMF28e、Ribbon Fiber (4、8,12) |
| Polishing Angle | 90、98、82 degree |
 |
