Jumper cable
- •Our precision optical cable manufacturing services can provide a wide range of standard and custom cables
- •Specialty cables, master reference and key adjust cables available
- •All cables are tested, serialized and labeled in individual bags with complete test information
- •Production facilities meet strictest quality control under ISO9001 and connector components meet or exceed industry standard performance levels
U.S. Pat. No. 5,688,905

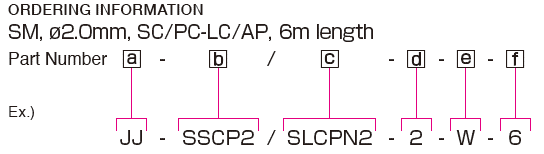

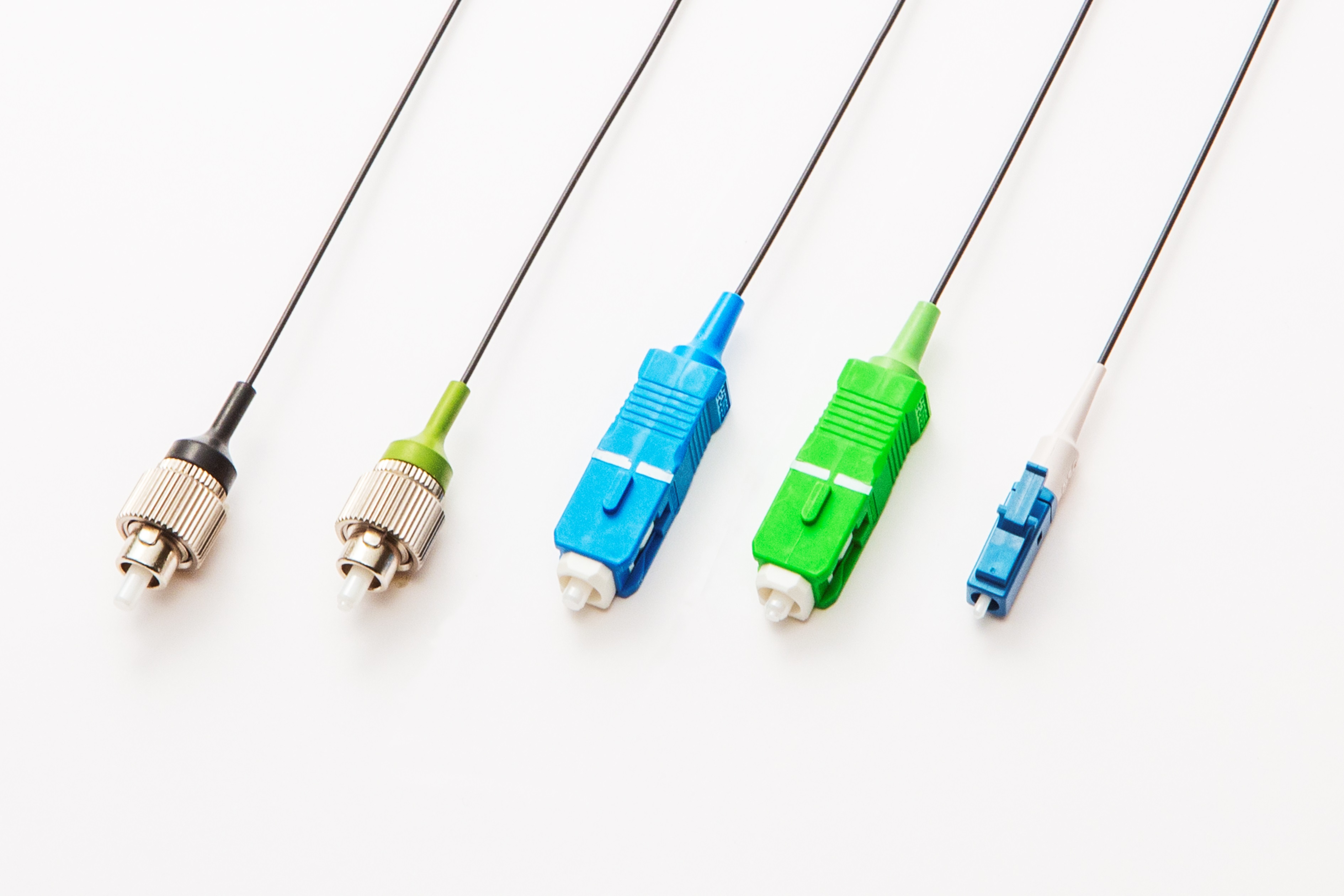

Standard Jumper
a |
Jumper Type |
Jumper |
JJ |
Pigtail |
JP |
Master jumper |
MJ |
Master pigtail |
MP |
b |
Connector Type |
See Table 1 |
c |
Fiber Diameter |
φ0.9mm buffer |
1 |
φ2.0mm cable |
2 |
φ3.0mm cable |
3 |
d |
Fiber Type |
Single-Mode |
W |
Multi-Mode (50/125μm) |
M1 |
Multi-Mode (62.5/125μm) |
M2 |
e |
Length |
5m |
5 |
10m |
10 |
Hybrid Jumper
a |
Jumper Type |
Jumper |
JJ |
Master jumper |
MJ |
b/c |
Connector Type |
See Table 1 |
d |
Fiber Diameter |
φ0.9mm buffer |
1 |
φ2.0mm cable |
2 |
φ3.0mm cable |
3 |
e |
Fiber Type |
Single-Mode |
W |
MultiI-Mode (50/125μm) |
M1 |
Multi-Mode (62.5/125μm) |
M2 |
f |
Length |
5m |
5 |
10m |
10 |
- Option
-
- ・Available custom designed jumper cable
- ・AR coating and fiber metallization are available
- ・FC/Angle PC connector ferrule combination
- Narrow key (R) ... step ferrule
- Wide key (N) ... conical ferrule
♦Table 1. Connector Type
|
Type |
φ1 |
φ2 |
φ3 |
PC
RL≧50dB |
FC |
SAP4
SGP4 |
SAP3
SGP3 |
SAP3
SGP3
|
SC |
SSCP1 |
SSCP2 |
SSCP3 |
LC |
SLCC1 |
SLCC2 |
− |
Angle PC
RL>=60dB |
FC narrow key (R) |
SGPN4
SNP5K |
SGPN3
SNP3K |
SGPN3
SNP3K |
FC wide key (N) |
SNP5D |
SNP3D |
SNP3D |
SC (step) |
SSCPG1 |
SSCPG2 |
SSCPG3 |
SC (conical) |
SSCPN1 |
SSCPN2 |
SSCPN3 |
LC |
SLCCN1 |
SLCCN2 |
− |

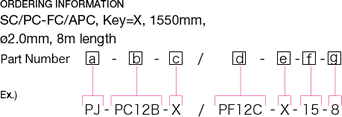

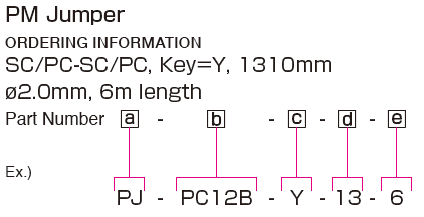

PM Jumper
PM Hybrid Jumper
a |
Number of Connector |
PM jumper |
PJ |
PM pigtail |
PP |
b |
Connector Type |
See Table 2 |
c |
Axis
(See Table 3) |
Free (FC) |
F |
X (FAST) |
X |
Y (SLOW) |
Y |
O (other) |
O |
d |
Wavelength |
1310nm |
13 |
1550nm |
15 |
e |
Length |
10m |
10 |
a |
Number of Connector |
PM jumper |
PJ |
b |
Connector Type |
See Table 2 |
c |
Axis
(See Table 3) |
Free (FC) |
F |
X (FAST) |
X |
Y (SLOW) |
Y |
O (other) |
O |
d |
Connector Type |
See Table 2 |
e |
Axis
(See Table 3) |
Free (FC) |
F |
X (FAST) |
X |
Y (SLOW) |
Y |
O (other) |
O |
f |
Wavelength |
1310nm |
13 |
1550nm |
15 |
g |
Length |
10m |
10 |
・ Available ER ≧30dB Jumper
♦Table 2. Connector Type
|
Type |
φ1 |
φ2 |
PC
RL≧50dB |
FC |
PF11 |
PF12B |
SC |
PC11 |
PC12B |
LC |
PL11 |
PL12 |
Angle PC
RL>=60dB |
FC narrow key (R) |
PF11A |
PF12C |
FC wide key (N) |
PF11AN |
PF12CN |
SC |
PC11A |
PC12C |
♦Table 3. Polarization Axis
Polarization |
F (Free) |
X (Fast) |
Y (Slow) |
O (Other) |
Direction of the stress producing members against the key |
 |
 |
 |
 |
The stress producing members are free to the key (the key is not fixed) |
The stress producing members are horizontal to the key : 0°±3° |
The stress producing members are perpendicular to the key : 0°±3° |
The stress producing members are at the designated angle to the key |

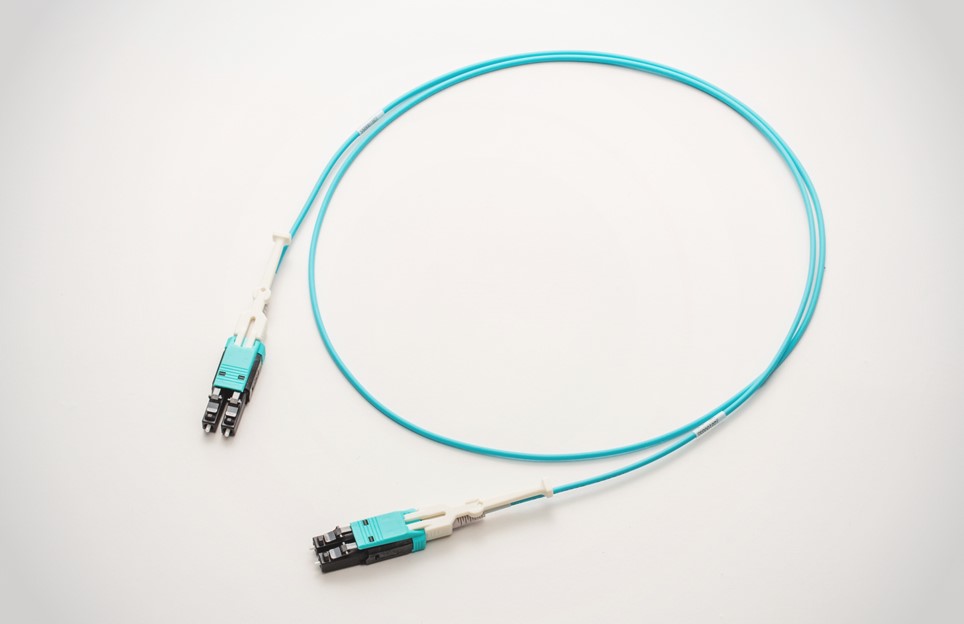

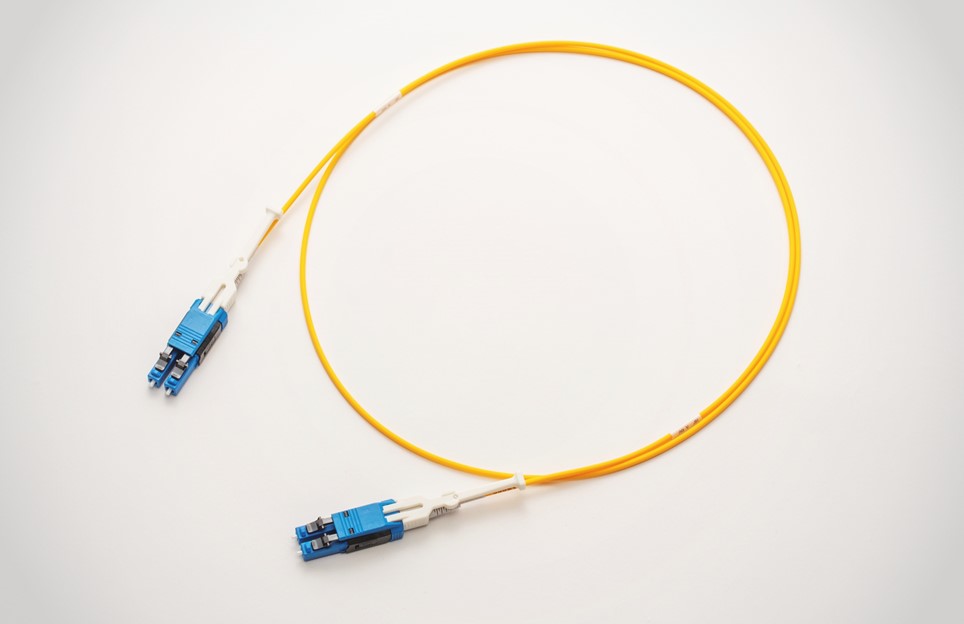

Intelli-Cross® Pro Jumper
Click icon of Intelli-Cross® Pro LC Uniboot Connector as details.
- ・Intelli-Cross® Pro is Uniboot Connector of LC Duplex type and apply ultra high density to placement.
- ・Achieving cabling density ½ reduction due to integrate one code from two fibers.
- ・Compact design is optimum to limited space.
- ・Intelligent detachable from patch panel and optical network equipment.
- ・Speedy A-B polarity Reverse by original key technology.
- ・Available for single mode & multi mode.
- ・Please contact us about jumper cable with low IL and RL.

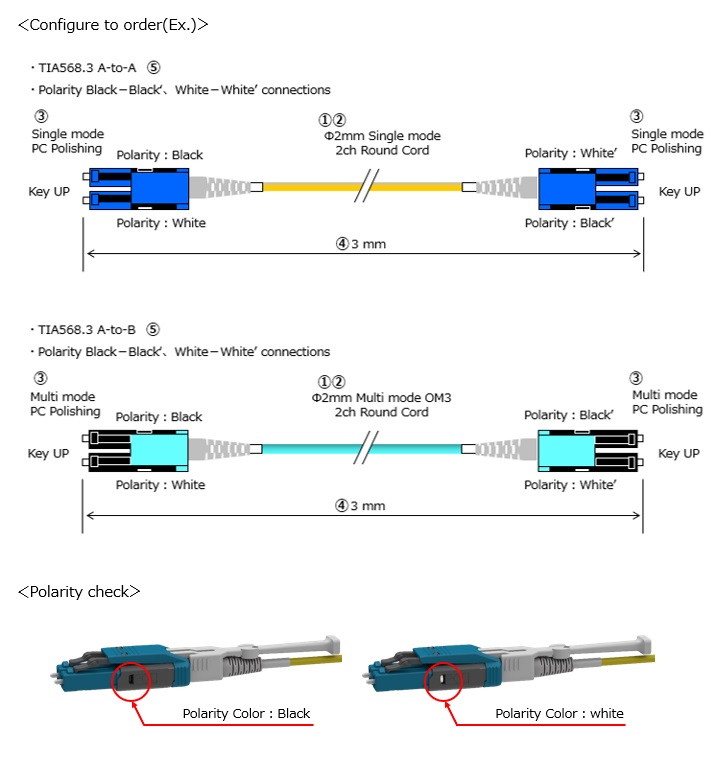

■How to Order(See below, please)
- ① Cable Type:Φ2mm Round Cord/Φ3mm Round Cord
- ② Fiber Type:Single mode/Multi mode OM3/Multi mode OM4 etc...
- ③ Polishing Type:Single mode:PC/Angle PC、Multi mode:PC
- ④ Length:1m/3m/5m/10m etc...
- ⑤ Polarity:TIA568.3 A-to-B/TIA568.3 A-to-A

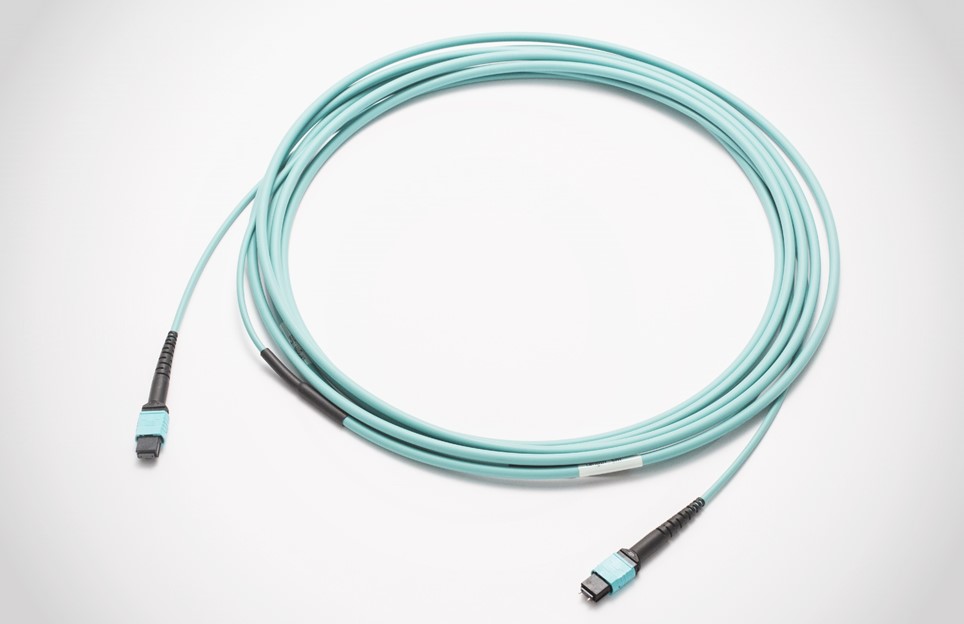

MPO Jumper Cable
- ・MPO connector has integrated MT ferrule and be avaiable to collectively connect several fibers (8, 12, or 24).
- ・One MPO connector achieves high dense conectivity and low volume wiring.
- ・Apply low loss MPO jumper in option, not only standard.
- ・Apply bare ribbon and normal types cable.
- ・Avaiable to choose the trunk cable.

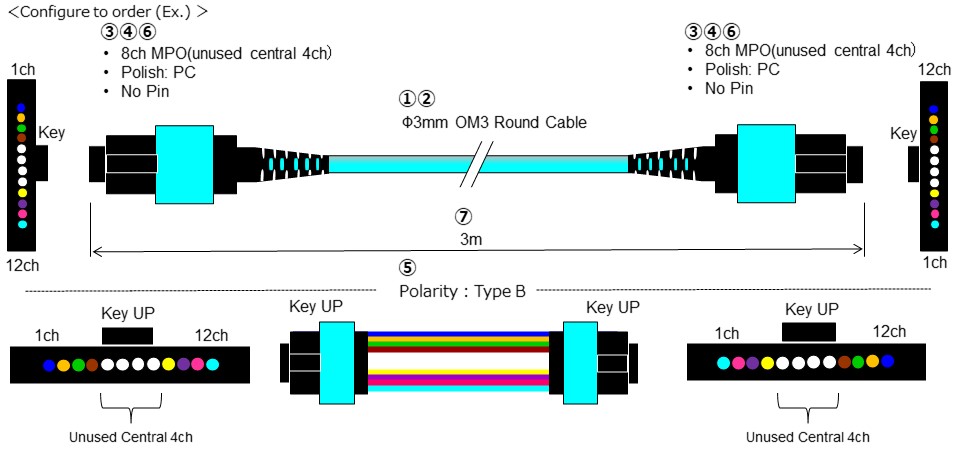

■How to Order (See below, please)
- ① Cable Type : Φ3mm Round Cord/Φ4.5mm Round Cord/Ribbon Cable
- ② Fiber Type : Single Mode/Multi Mode OM3/Multi Mode OM4 etc...
- ③ Polish Type : PC/Angle PC
- ④ Fiber Count : 4/8/12/24ch
- ⑤ Polarity : Type A/Type B/Type C
- ⑥ Pin : Yes/No
- ⑦ Length : 1m/3m/5m/10m etc...

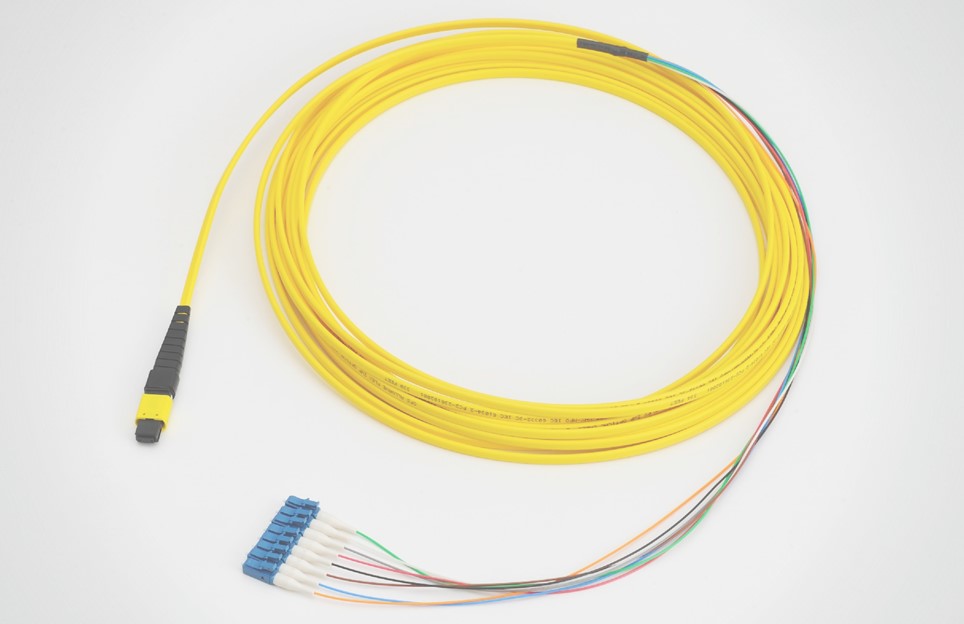

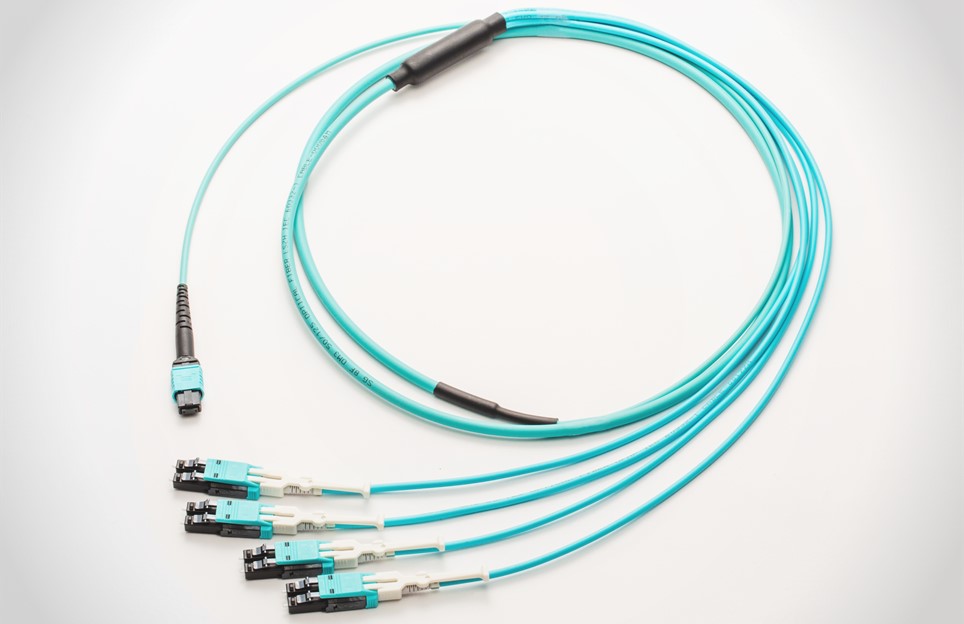

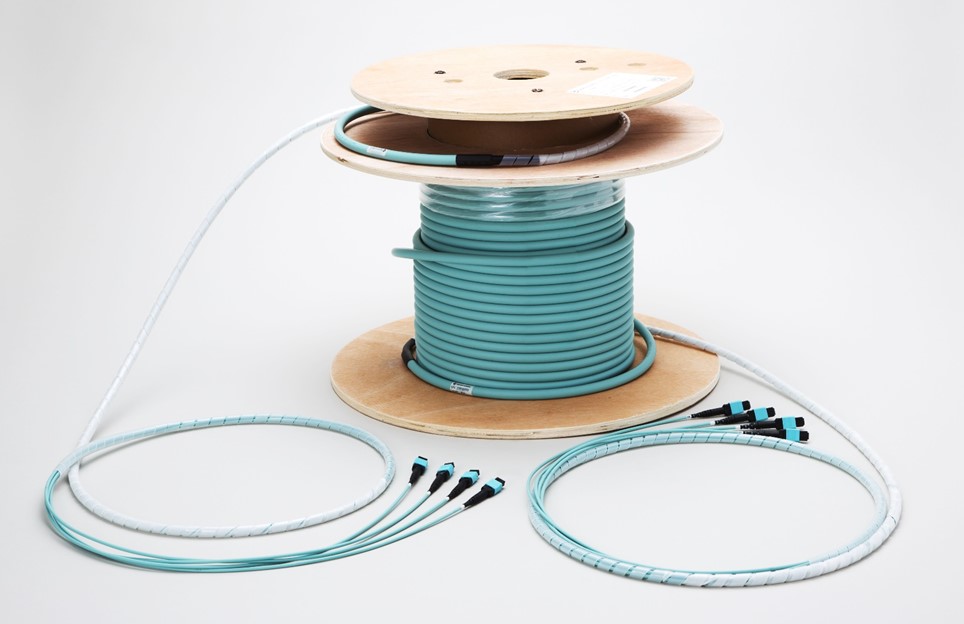

MPO Fan-Out Cable
- ・Fan-Out Cable with one side is MPO and opposit side is Single Connector
- ・Single Connector side is flexible by request like a FC/SC/LC, Intelli-Cross® Pro (LC Uni-boot)
- ・Custom avaiable for polishing/Fiber Count/Cable length depeding on your design
- ・Original Design restrains the loss fluctuation depeding on temperature change by Breakout Cable
- ・Avaiable to choose Single Connector for both side
- ・Apply bare ribbon and normal types cable.
■How to Order (See below, please)
- ① Cable Type (MPO side) : Φ3mm Round Cord/Φ4.5mm Round Cord/Ribbon Cable
- ② Cable Type (Single Connector side) : Φ2mm Round Cord/Φ3mm Round Cord/Φ0.9mm Ribbon
- ③ Connector Type : MPO/SC/LC/FC etc...
- ④ Fiber Type : Single Mode/Multi Mode OM3/Multi Mode OM4 etc...
- ⑤ Polishing Type (MPO side) : PC/Angle PC
- ⑥ Polishing Type (Single Connector side) : PC/Angle PC
- ⑦ Fiber Count : 4/8/12/24 etc...
- ⑧ Pin (MPO side) : Yes/No
- ⑨ Full Length : 1m/3m/5m/10m etc...
- ⑩ Single Cable Length : 0.5m/1m/3m etc...
