Intelli-Cross® Pro LC Uniboot Connector

  • ※Intelli-Cross is a trademark of SEIKOH GIKEN Co., Ltd.

  • image
  • image

Application


Today’s trend increasing traffic for communication and needs more ultra high density to placement including Data Center. Our Uniboot connector, Intelli-Cross® Pro can achieve as best solution for limited space.

Overview


Feature

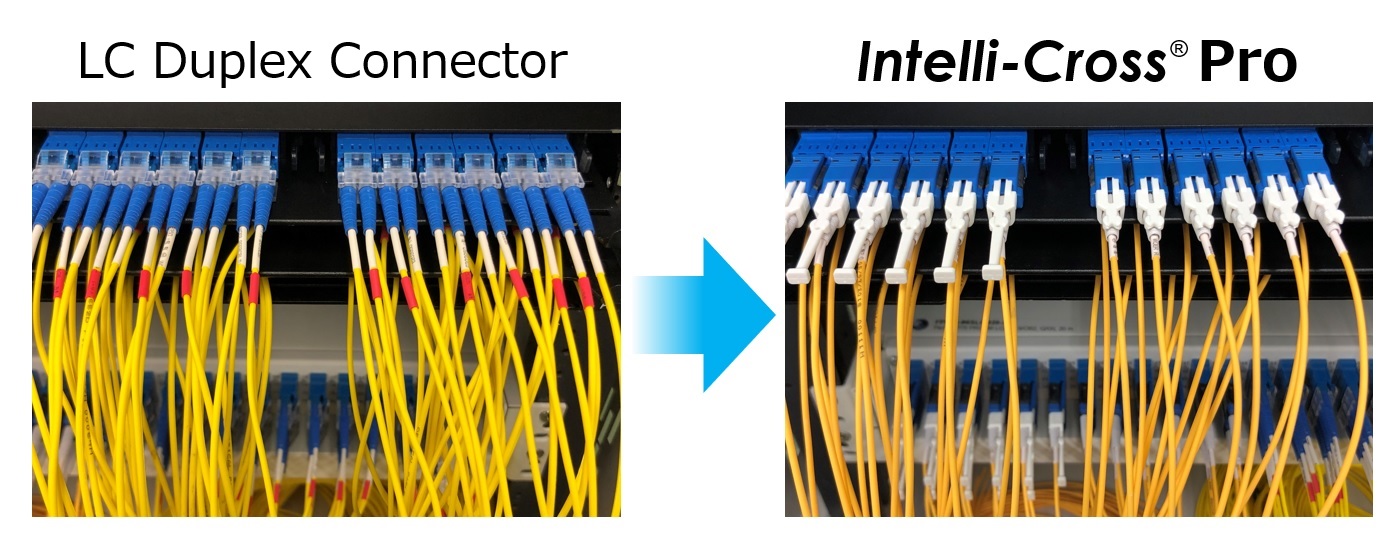

①Cabling density ½ reduction

Optical fiber cables reducing implementable by
consolidated from 2 to 1 cable.

LC Duplex Connector and Intelli-Cross Pro

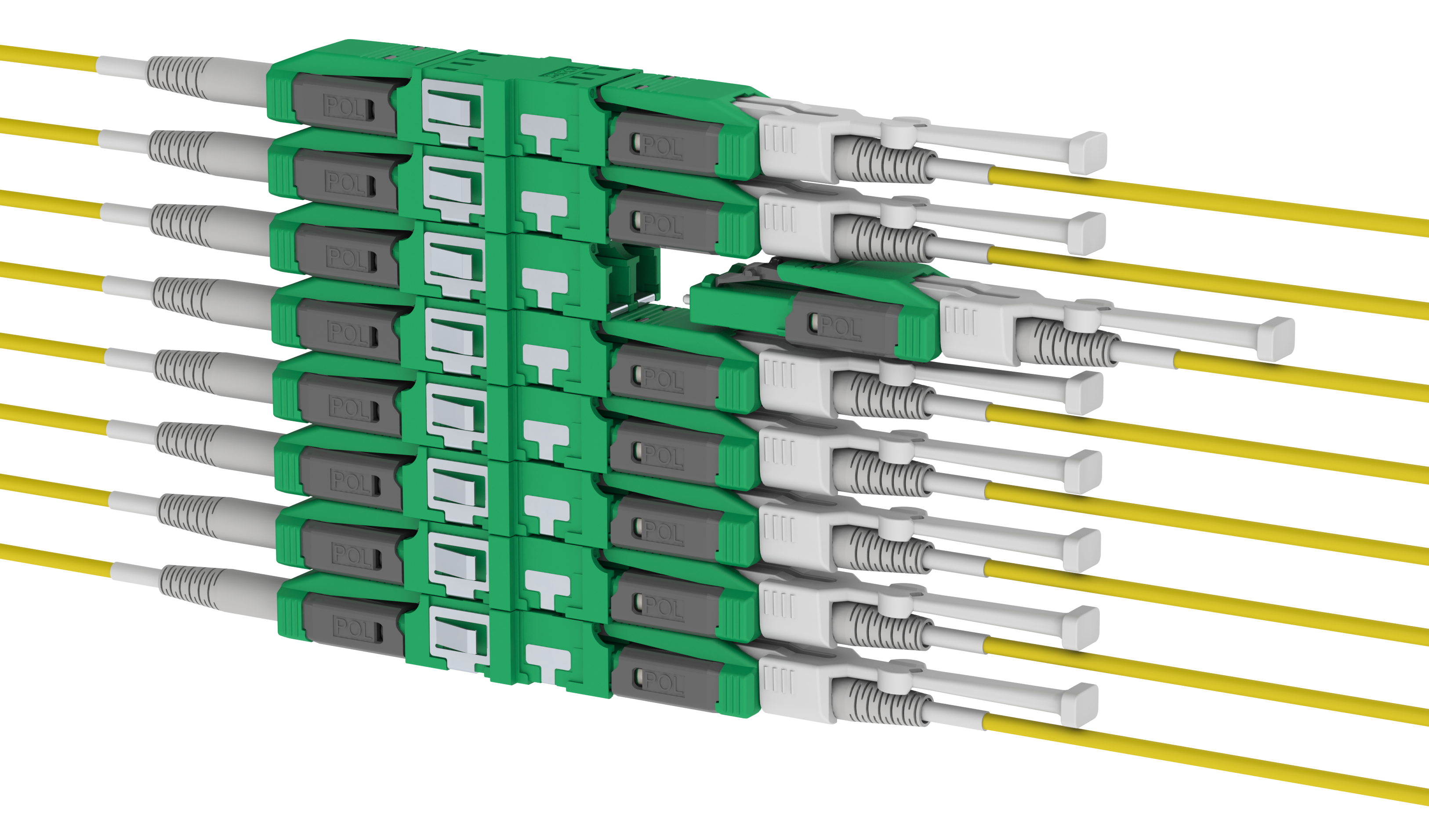

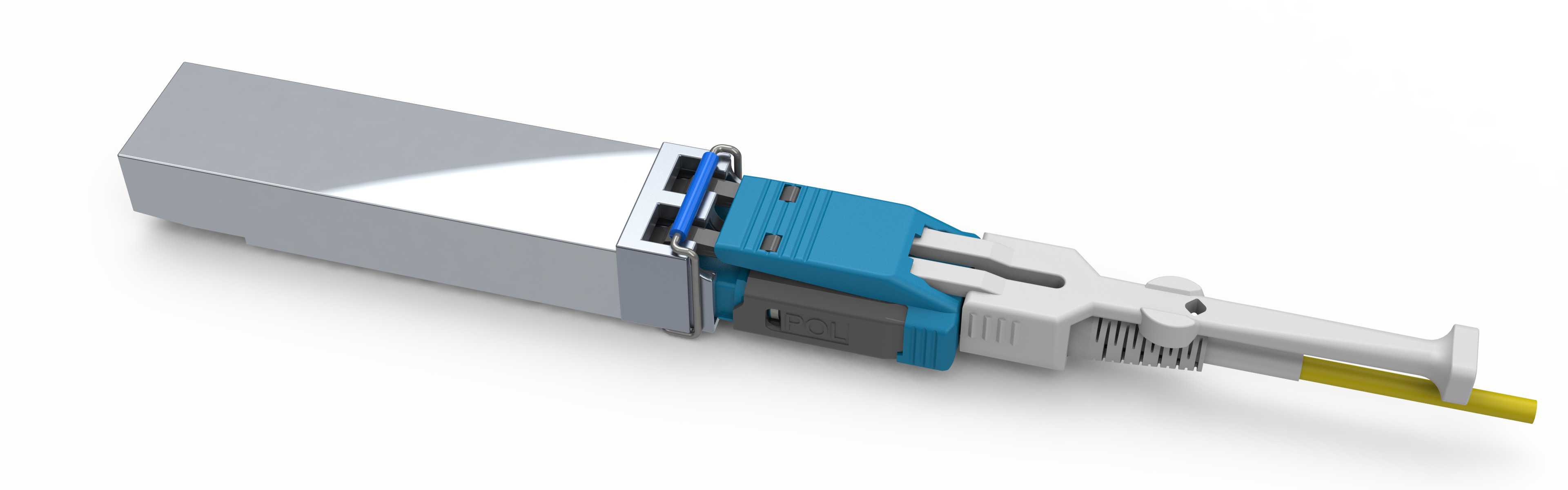

②Intelligent detachable

Slim & Flat top design
Smoothly, Easily, and 3-Ways detachable for Ultra-high
density

Note: In case LC interface of transceiver have the improper quality for the push-pull mating such as the heavy burrs, Intelli-Cross Pro without its optional push-pull tool is recommended.

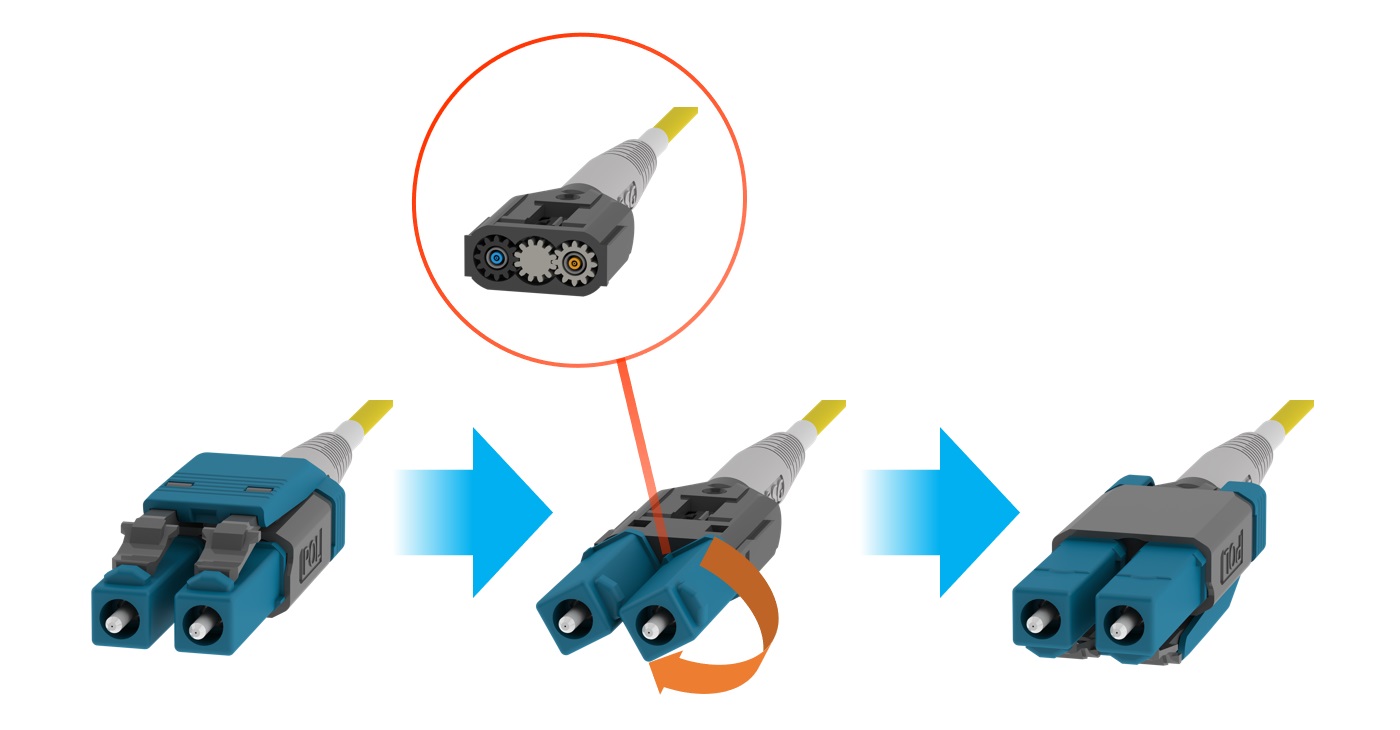

③Uniqueness A-B Polarity Reverse

Our patented micro gear that is integrated in connector synchronously rotates two plug frames.
Speedy, Easily, and Safety are feasible in field operation

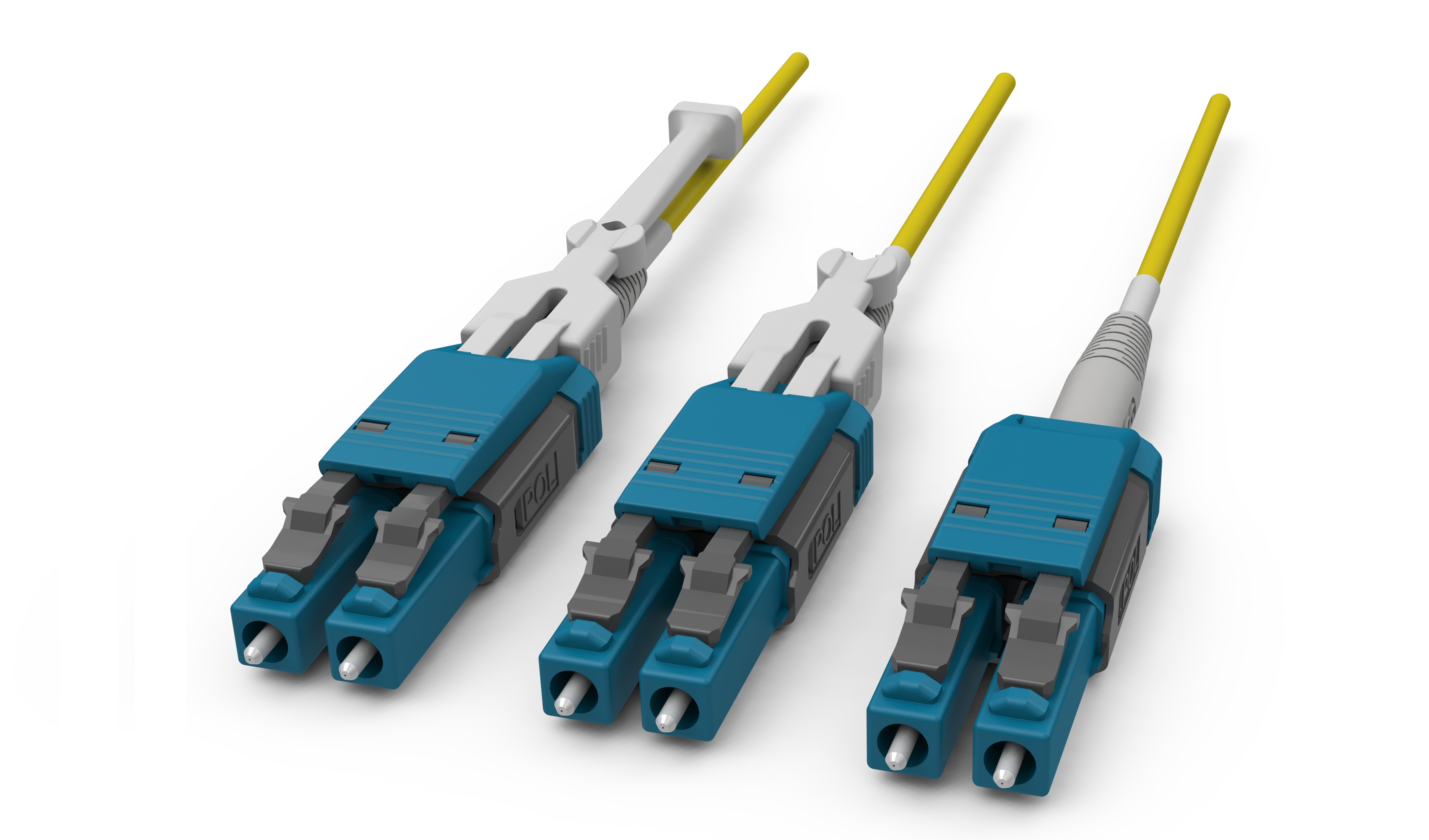

④2-in-1 length Push-pull tool

LONG & SHORT Selectable length


How to select the length. Easy to snap
⑤Polishing

2Simultaneously polishing available, APC and PC Duplex
Saving time & cost!


APC duplex polishing.Set up the 90 degree rotated plug unit into polishing holder After polished, put the 90 degree rotated plug unit to the original degree position.

Line-up


Trademark Registration No.(As of October, 2023)

  • Japan:No.6281924
  • Taiwan:No.02130150
  • China:No.49362897
  • USA:No.6337455
  • Canada:No.1556879
  • Korea:No.1556879
  • EU:No.1556879

Patent No.(As of October, 2023)

  • Japan:No.6173629 No.6346703 No.6363781 No.6363784 No.6812037 No.6892710 No.7208623
  • USA:No.9941631 No.9958623 No.10042126 No.10042129 No.10488601 No.11329418 No.11415756 No.11579372
  • China:No.ZL201780001762.5 No.ZL202010135893.6 No.ZL202011322562.X No.ZL202110133464.X
  • Switzerland:No. EP3876008 No. EP3879320
  • EU:No. EP3876008 No.EP3879320

Design Registration No.(As of October, 2023)

  • USA:No.D980167
  • Switzerland:No.DM/213242
  • UK:No.DM/213242
  • EU:No.DM/213242

Link to website

  • Go to YouTube

  • Go to Down load for Intelli-Cross® Pro

  • Go to Jumper Cable with connectors

  • Go to Manufacturing Equipment for Assembly


Please contact us if you have any questions for specifications and other details.
