PRODUCTS MENU

PRODUCTS

  • catalogueDL

Endface Cleaner

SHM-503(Handi Mate™)

  • •This newly added HandiMate with cleaning cloth provides further usability and reliability to the users.
  • •It enables to clean even SC/APC and FC/APC Step ferrule connector thanks to the high durability cleaning cloth.
SHM-503(Handi Mate™)
SHM-503(Handi Mate™)Before After
  • ・Handy and high performance cleaner that fits in your hand and achieves cleaning more than 500 times
  • ・Just one sliding motion enables to remove contamination such as dust or oil on optical connector end-face
  • ・Connector to be set on guide holder enables stable and even cleaning result always
  • ・SHM-503 enables to clean Duplex LC and Duplex MU connectors in addition to Simplex SC,FC,ST,LC and MU connectors.
Part No. SHM-503
Application Clean male connector endface
Dimension H110×W68×D28mm (Cap opened)
Weight 80g
Operation Slide type
Life More than 500 times
Applicable connector SC, FC, ST, LC, MU for PC and APC
Duplex LC/PC,Duplex MU/PC

SHM-501/502(Handi Mate™)

  • •Compact and reliable cleaner for connector end-face
  • •Easy cleaning in field installation or factory
SHM-501(Handi Mate™)
SHM-501(Handi Mate™)Before After
  • ・Handy and high performance cleaner that fits in your hand and achieves cleaning more than 500 times
  • ・Just one sliding motion enables to remove contamination such as dust or oil on optical connector end-face
  • ・Connector to be set on guide holder enables stable and even cleaning result always
  • ・SHM-502 enables to clean Duplex LC and Duplex MU connectors in addition to Simplex SC,FC,ST,LC and MU connectors.
Part No. SHM-501 SHM-502
Application Clean simplex connector tip
Dimension H110×W68×D28mm (Cap opened)
Weight 75g
Operation Slide type
Life More than 500 times
Applicable connector SC, FC, ST, LC, MU for PC and APC SC, FC, ST, LC, MU for PC and APC
Duplex LC/PC,Duplex MU/PC

SFM2.0-250/125/MPO(Ferrule Mate 2.0™)

  • •Latest concept in endface cleaner
  • •Proprietary mechanism for simultaneous forwarding and rotating cleaning cloth provides effective endface cleaning
SFM-250/125(Ferrule Mate™)
SFM-250/125(Ferrule Mate™)Before After
  • ・Handy and high performance cleaner that fits in your hand and equips cleaning cloth achieves cleaning more than 800 times for SFM2.0-250,SFM2.0-125 and 500 times for SFM2.0-MPO.
  • ・Originally developed mechanism for simultaneous forwarding and rotation of cleaning cloth removes contamination easily from ferrule endface, which existing product is hardly ever done
  • ・Tapered tip is ideal for cleaning inside of adapter. Also, by using protection cap, single connector endface can be cleaned
Part Number SFM2.0-250 SFM2.0-125 SFM2.0-MPO
Application Ferrule endface cleaning for inner adapter or single connector
Dimension (body) L230×W30×H40㎜
Dimension (tip) L265㎜
Weight 85g
Operation Push - Click operation
Life More than 800 times More than 500 times
Connector/Adapter Type SC, FC, ST
(both PC and APC)
MU, LC
(both PC and APC)
MPO
(both PC and APC)

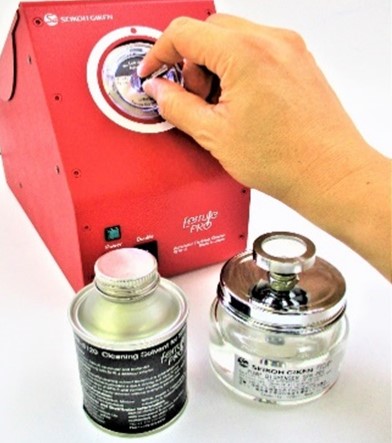

Automatic Desktop Cleaner SPR-3(Ferrule Pro™) (New)

Automatic Desktop Cleaner SPR-3(Ferrule ProTM)
Automatic Desktop Cleaner SPR-3(Ferrule ProTM)

In the well-received Ferrule Pro series, we have released a new SPR-3 model which realizes high cleaning performance and production yield for Multi-Fiber ferrule/connector (MT/MPO).

  • ●Wet-to-Dry combination cleaning is realized with a unique double-action mechanism and optimized solvent.
  • ●Cleaning time for Multi-Fiber ferrule/connector (MT/MPO) is 3.0 seconds.
  • ●Improve visibility by adopting LED lighting for the chuck mounting part.
  • ●Compatible with all existing Holding Chucks and Cleaning Cassette SPRP-10K.
Dimensions

W120×D260×H200㎜

Weight Main unit:2kg, Replaceable cassette:0.5kg
Environment CE/PSE
PowerSupply AC100-240V 50/60Hz
Cleaning Media Replaceable cleaning paper and cleaning solvent
Applicable Connector MT/PC, MPO/PC, MT/APC, MPO/APC with standard chuck
Life pf Cleaning cassette 5,000 times cleaning per cassette in double motion
Cleaning time 3.0sec. / Multi-Fiber ferrule/connector (MT/MPO) in double motion
Standard set Main unit(1pce), Cassette(1pce), Cleaning Solvent(1pce), Pump Dispenser(1pce), Cleaning Holder(4pcs), AC power cable(1pce), Operating Manual(1pce)

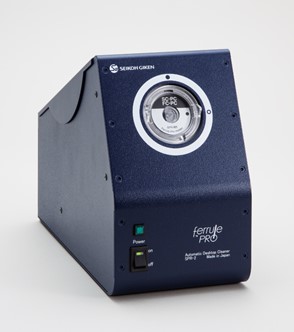

Automatic Desktop Cleaner SPR-2(Ferrule Pro™)

Automatic Desktop Cleaner SPR-2(Ferrule ProTM)
Automatic Desktop Cleaner SPR-2(Ferrule ProTM)

FerrulePro SPR-1 has been well received as the World's Exclusive Benchtop Fiber Cleaner since its launch in 2010.
Now, the upgraded SPR-2 model which achieves cost reduction and high speed cleaning is newly released.

  • ●SPR-2 achieves twice as fast cleaning speed compare to the old SPR-1 model.
  • ●Actual cleaning time per connector can be reduced to 1.5sec from 3.0sec.
  • ●Realize further productivity improvement and reliable cleaning performance simultaneously.
  • ●Compatible with all existing Holding Chucks and Cleaning Cassette SPRP-10K.
Dimensions

W120×D260×H200㎜

Weight Main unit:2kg, Replaceable cassette:0.5kg
Environment CE/PSE
PowerSupply AC100-240V 50/60Hz
Cleaning Media Cleaning paper, Replaceable cassette
Applicable Connector SC/FC/ST/LC/MU connectors and ferrules PC, APC tips
Life pf Cleaning cassette 10,000 times cleaning per cassette
Cleaning time 1.5sec. / connector
Standard set Main unit(1pce), cassette(1pce), Cleaning Holder(4pcs), AC power cable(1pce), Opetating Manual(1pce)

Automatic Desktop Cleaner SPR-1(Ferrule Pro™)

Automatic Desktop Cleaner SPR-1(Ferrule ProTM)
Automatic Desktop Cleaner SPR-1(Ferrule ProTM)

FerrulePro™ is the world’s first fully automated desktop fiber connector cleaner for cable assembly production environments and laboratory.
FerrulePro™ automates the cleaning of all types of terminated fiber products, a critical task where performance once depended largely on the production line worker’s skill.

Dimensions

W120×D260×H200㎜

Weight Main unit:2kg, Replaceable cassette:0.5kg
Environment CE/PSE
PowerSupply AC100-240V 50/60Hz
Cleaning Media Cleaning paper, Replaceable cassette
Applicable Connector SC/FC/ST/LC/MU connectors and ferrules PC, APC tips
Life pf Cleaning cassette 10.000 times cleaning per cassette
Cleaning time 3sec. / connector
Standard set Main unit(1pce), cassette(1pce), Cleaning Holder(7pcs),
AC power cable(1pce), Opetating Manual(1pce)
