SC Type Fiber Optic Connectors
Equivalent to NTT specifications (SC)
Complies with IEC 61754-4 and JIS C 5973
Models meet Telcordia test specification GR-326-CORE are available
Models satisfy Vertical Burning Test for Classifying Materials UL94V-0 are available
Available precision crimping tool
Part Number: MDTK-02-120G

SC Housing for φ0.9mm Buffer Cable
SC Housing for φ2mm / 3mm Cable

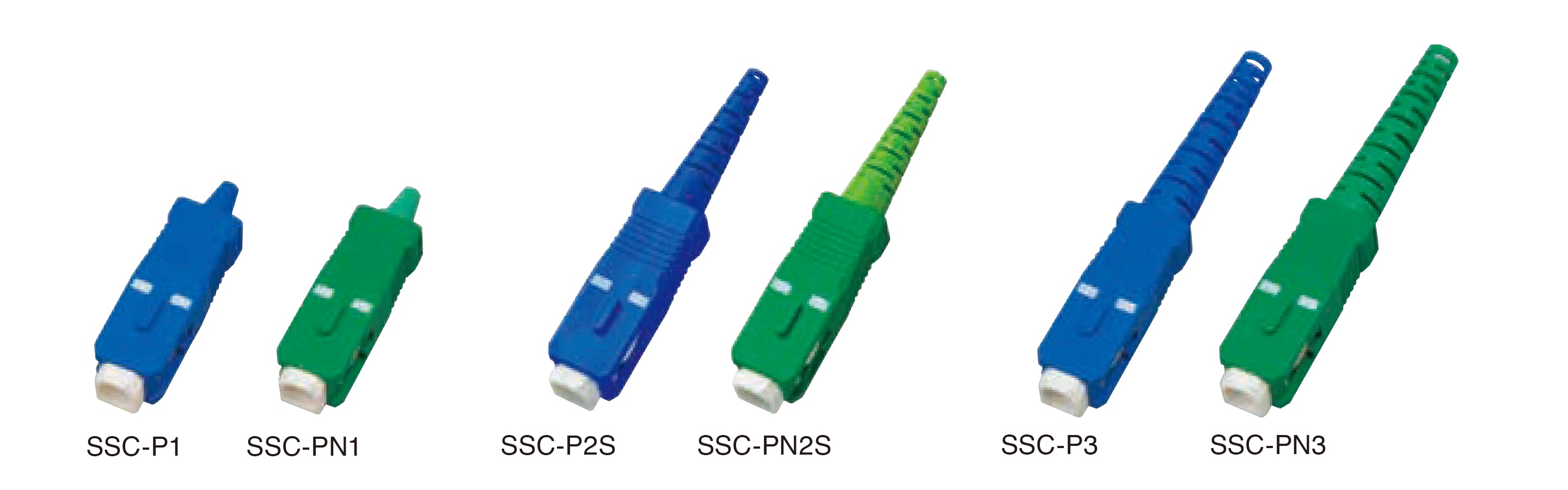

SC φ0.9mm
Using plastic stop ring offers low cost, light weight and easy assembly
Total length of 33mm is optimum for use inside system equipment and devices
  Part Number
For PC SSC-P1511F3151G
For Angle PC SSC-PN1811G3151G

SC φ2mm / φ3mm
Complies with Telcordia GR-326-CORE
  Part Number
φ2mm for PC SSC-P25B1F302G
φ2mm with short boot for PC SSC-P2S5D1F301G
φ2mm for Angle PC SSC-PN28B1G302G
φ2mm with short boot for Angle PC SSC-PN2S8D1G301G
φ2.4mm for PC SSC-P45A1F302G
φ2.4mm for Angle PC SSC-PN48A1G302G
φ3mm for PC SSC-P35C1F302G
φ3mm for Angle PC SSC-PN38C1G302G

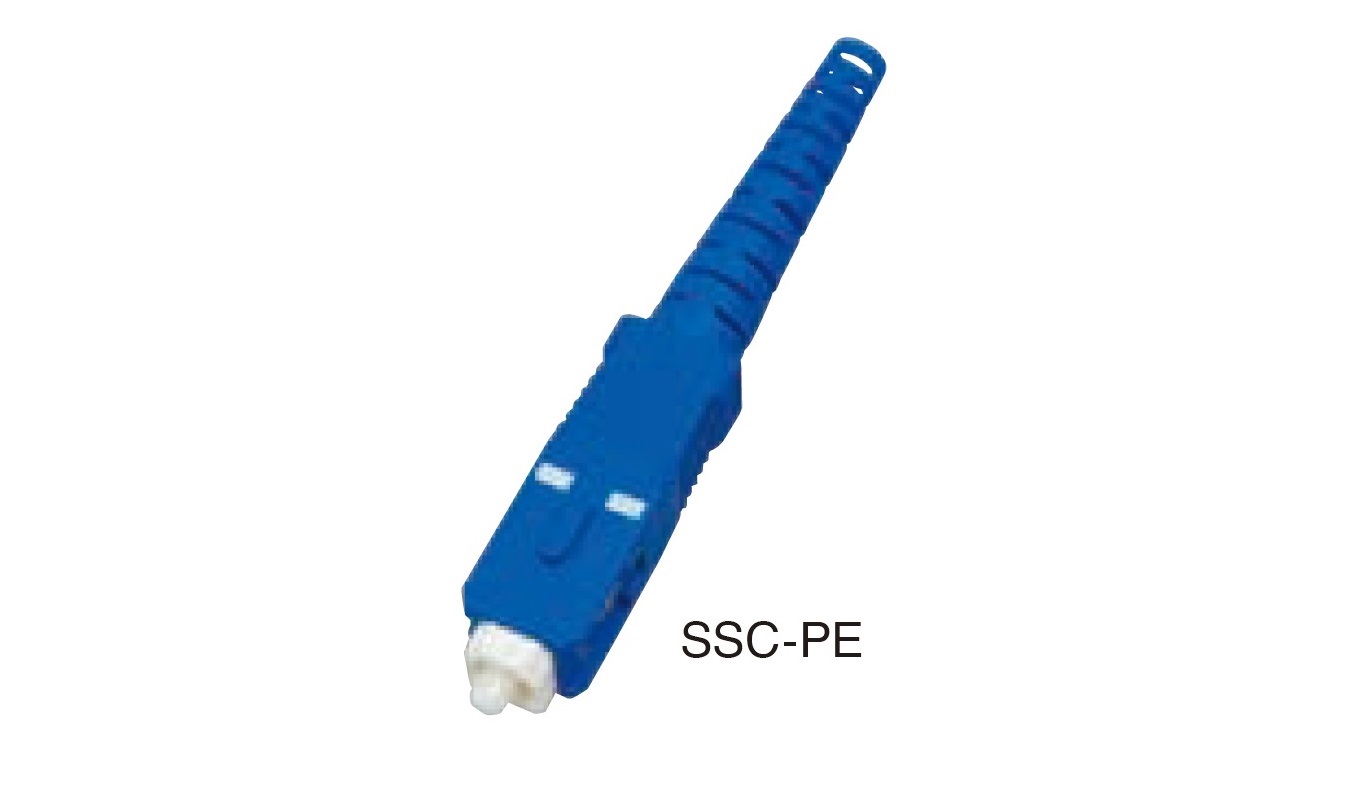

SC Plug for PC

One-piece design for easy assembly

Pre-radius Zirconia ferrule enables easy polishing

Plastic boot complies with Telcordia GR-326-CORE


a Boot Color Blue 5
b Boot I.D. φ0.9mm (flame-resistant rubber) 1
φ0.9mm (plastic) 9
φ2mm (plastic) B
φ3mm (plastic) C
c Ferrule I.D. 125μm 125
126μm 126
d Marking of Grip SG/SSC-P 1
e Cap Blue F
f Package Bulk 3
g Required 00G

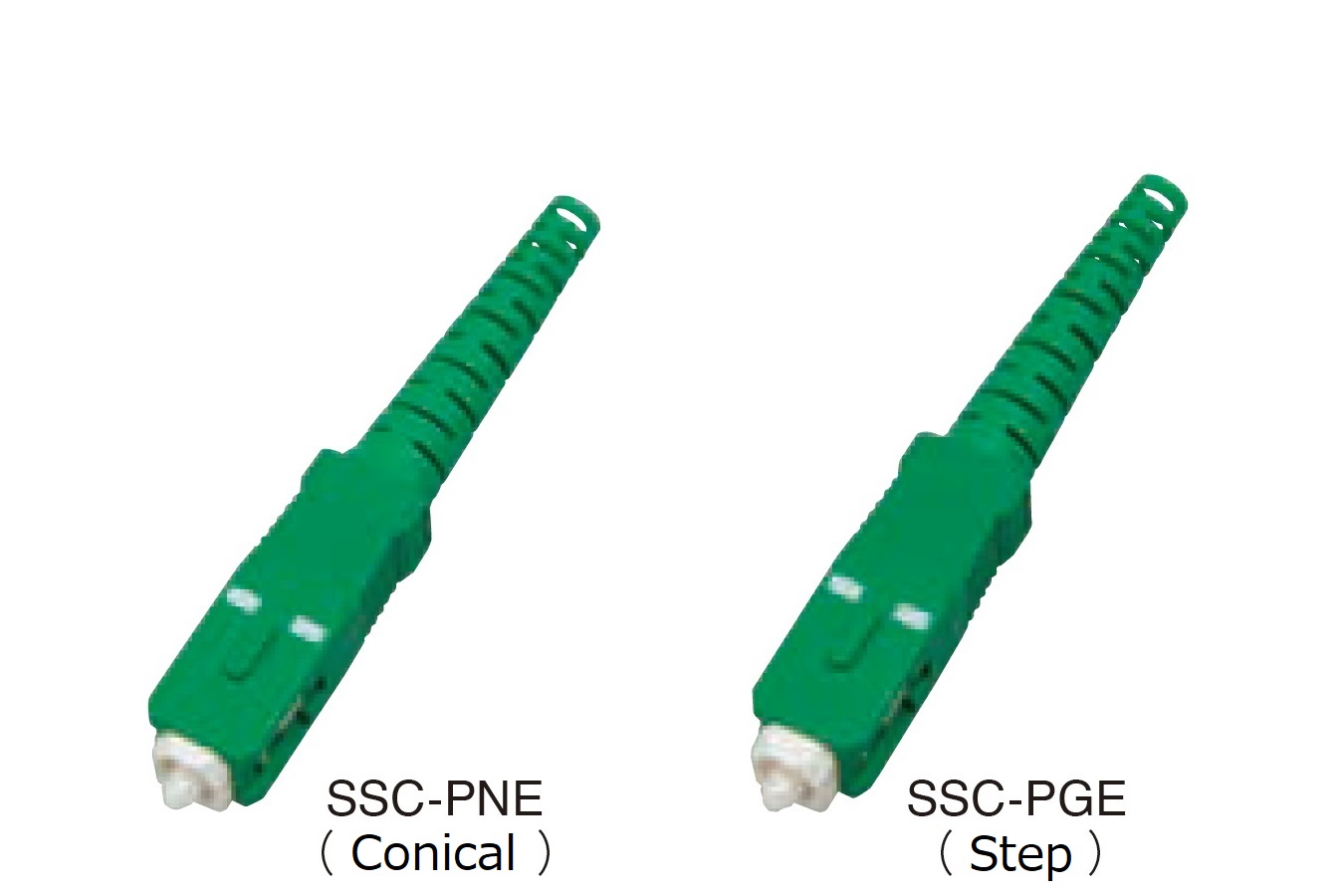

SC Plug for Angle PC

One-piece design for easy assembly

Pre-angle Zirconia ferrule enables easy polishing

Plastic boot complies with Telcordia GR-326-CORE

SSC-PNE: Conical shape

SSC-PGE: Step shape




a Boot Color Green 8
b Boot I.D. φ0.9mm (flame-resistant rubber) 1
φ0.9mm (plastic) 9
φ2mm (plastic) B
φ3mm (plastic) C
c Ferrule I.D. 125μm 125
126μm 126
d Marking of Grip SG/SSC-P 1
e Cap Green G
f Package Bulk 3
g Required 00G



Page top

Click link below for detailed SC connector drawings and specifications

>> To SC connector specifications download page

Get Adobe Reader Adobe Reader is required to open the pdf files above.
Click here to download a free copy.
